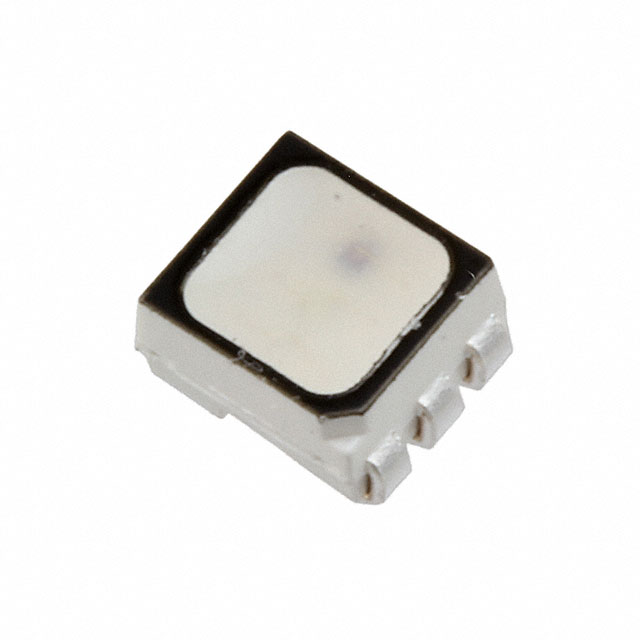

ASMT-YTB7 Series

Catalog

LED RGB DIFFUSED 6PLCC SMD

Part	Lens Transparency	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [y]	Current - Test	Millicandela Rating	Lens Size	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Package / Case	Configuration	Mounting Type	Color	Height (Max) [Max] [z]	Viewing Angle	Lens Style
Broadcom Limited ASMT-YTB7-0AA02	Diffused	6-PLCC	2.1 V 3.1 V 3.1 V	3 mm	2.8 mm	20mA Blue 20mA Green 20mA Red	384 mcd 650 mcd 1900 mcd	2.3 mm	469 nm	529 nm	623 nm	630 nm	465 nm	522 nm	6-SMD J-Lead	Independent	Surface Mount	Blue Green Red	2 mm	120 °	Square with Flat Top
