222A121 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

MOLDED PARTS

Part	Type	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Small Recovered Length	Small Recovered Length	Material	Color	Large Recovered Length	Large Recovered Length	Shell Size - Insert	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Features
TE Connectivity Aerospace, Defense and Marine 222A121-100/184-0	Boot - 90°	18.03 mm	0.71 "	5.84 mm	0.23 in	Polyolefin (PO) Semi-Flexible Halogen Free	Black	0.89 in	22.61 mm	21	0.98 in	24.89 mm	24.89 mm	0.98 in	0.4 "	10.16 mm
TE Connectivity Aerospace, Defense and Marine 222A121-4/42-0	Boot - 90°	5.31 mm	0.209 "	14.71 mm	0.579 "	Polyolefin (PO) Flexible	Black	0.89 in	22.61 mm	21	0.98 in	24.89 mm	24.89 mm	0.98 in	0.402 in	10.21 mm
TE Connectivity Aerospace, Defense and Marine 222A121-4-0	Boot - 90°	5.31 mm	0.209 "	14.71 mm	0.579 "	Polyolefin (PO) Flexible	Black	0.89 in	22.61 mm	21	0.98 in	24.89 mm	24.89 mm	0.98 in	0.402 in	10.21 mm

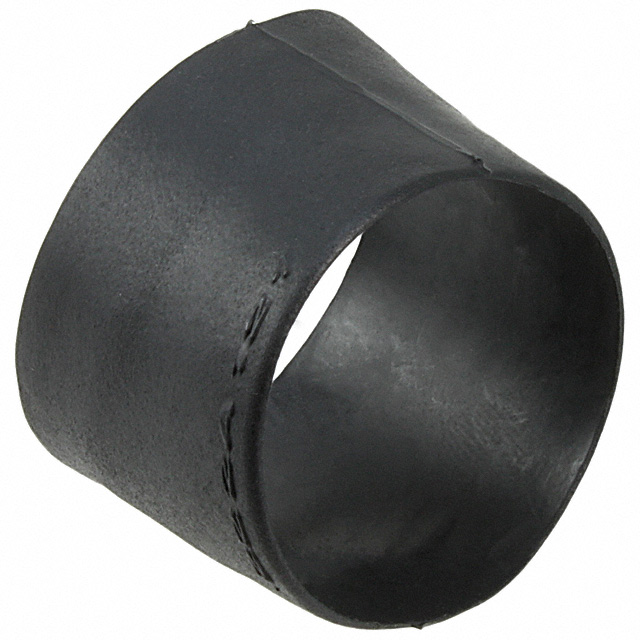

TE Connectivity Aerospace, Defense and Marine 222A121-3-0	Boot - 90°	5.31 mm	0.209 "	14.71 mm	0.579 "	Polyolefin (PO) Semi-Rigid	Black	0.89 in	22.61 mm	21	0.98 in	24.89 mm	24.89 mm	0.98 in	0.402 in	10.21 mm

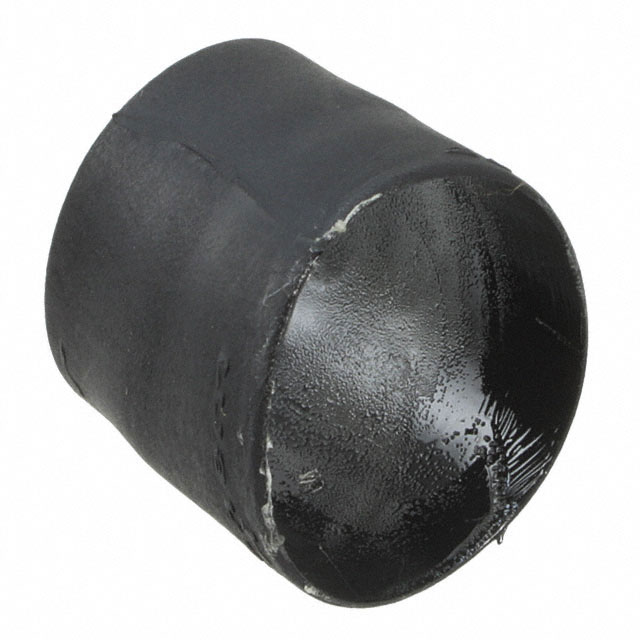

TE Connectivity Aerospace, Defense and Marine 222A121-3/42-0	Boot - 90°	5.31 mm	0.209 "	14.71 mm	0.579 "	Polyolefin (PO) Semi-Rigid	Black	0.89 in	22.61 mm	21	0.98 in	24.89 mm	24.89 mm	0.98 in	0.402 in	10.21 mm	Adhesive Coating
TE Connectivity Aerospace, Defense and Marine 222A121-3/86-0	Boot - 90°	5.31 mm	0.209 "	14.71 mm	0.579 "	Polyolefin (PO) Semi-Rigid	Black	0.89 in	22.61 mm	21	0.98 in	24.89 mm	24.89 mm	0.98 in	0.402 in	10.21 mm	Adhesive Coating
