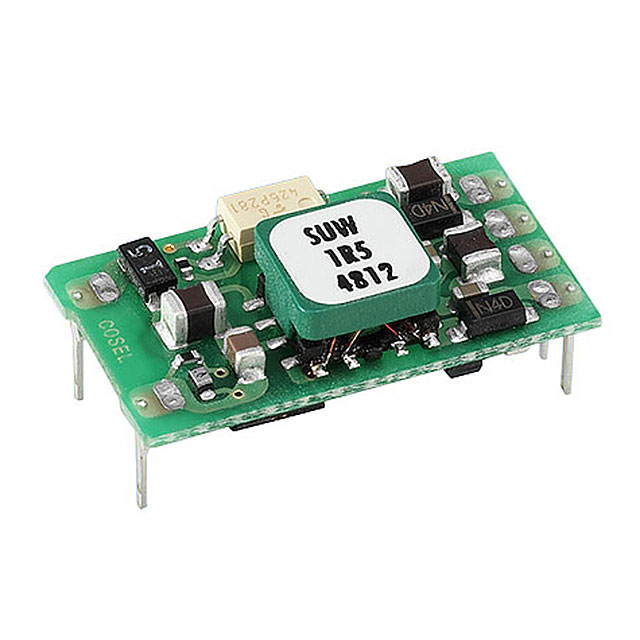

SUW1R54812 Series

Catalog

DC DC CONVERTER +/-12V 24V 1.6W

Part	Power (Watts)	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Voltage - Output 1	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Type	Efficiency	Number of Outputs	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Applications	Voltage - Output 2	Features
Cosel USA, Inc. SUW1R54812BP	1.6 W	500 V	-40 °C	85 °C	6-SMD Module	12 V	36 V	65 mA	76 V	Isolated Module	75 %	2	Surface Mount	12.2 mm	21.4 mm	0.84 "	6.5 mm	0.48 in	0.26 in	ITE (Commercial)	-12 V
Cosel USA, Inc. SUW1R54812C		500 V	-40 °C	85 °C	6-DIP Module	12 V	36 V	65 mA	76 V	Isolated Module	75 %	2	Through Hole	12.2 mm	21.4 mm	0.84 "	6.5 mm	0.48 in	0.26 in	ITE (Commercial)	-12 V	OCP
Cosel USA, Inc. SUW1R54812B	1.6 W	500 V	-40 °C	85 °C	6-SMD Module	12 V	36 V	65 mA	76 V	Isolated Module	75 %	2	Surface Mount	12.2 mm	21.4 mm	0.84 "	6.5 mm	0.48 in	0.26 in	ITE (Commercial)	-12 V
