C410C Series

Manufacturer: KEMET

Catalog

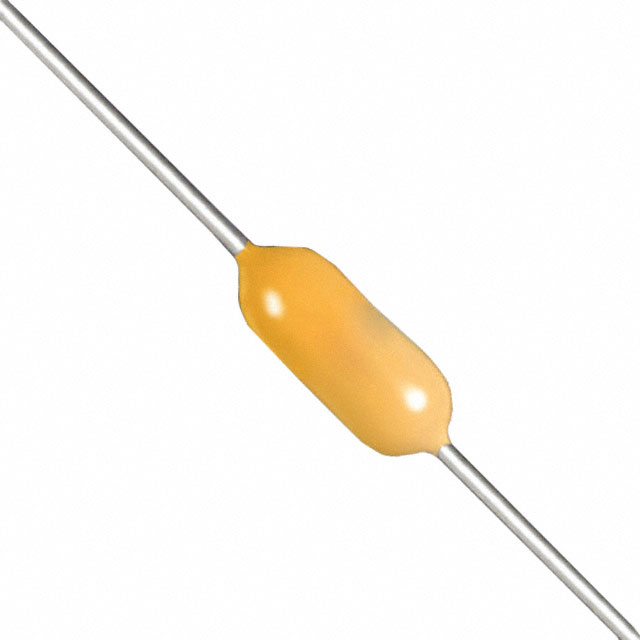

CAP CER 2000PF 250V C0G AXIAL

...

Part	Capacitance	Mounting Type	Features	Lead Style	Applications	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Tolerance	Package / Case	Temperature Coefficient	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated
KEMET C410C202JAG5TA	0.002 µF	Through Hole	Low ESL	Straight	General Purpose	0.17 in	0.095 in	2.41 mm	4.32 mm	5 %	Axial	C0G NP0	-55 C	125 °C	250 V
KEMET C410C759B3G5TA7200	7.5 pF	Through Hole	Low ESL	Straight	General Purpose	0.17 in	0.095 in	2.41 mm	4.32 mm	0.1 pF	Axial	C0G NP0	-55 C	125 °C	25 VDC
KEMET C410C272F3G5TA	2700 pF	Through Hole	Low ESL	Straight	General Purpose	0.17 in	0.095 in	2.41 mm	4.32 mm	1 %	Axial	C0G NP0	-55 C	125 °C	25 VDC
KEMET C410C479D3G5TA	4.7 pF	Through Hole	Low ESL	Straight	General Purpose	0.17 in	0.095 in	2.41 mm	4.32 mm	0.5 pF	Axial	C0G NP0	-55 C	125 °C	25 VDC
KEMET C410C182G3G5TA	1800 pF	Through Hole	Low ESL	Straight	General Purpose	0.17 in	0.095 in	2.41 mm	4.32 mm	2 %	Axial	C0G NP0	-55 C	125 °C	25 VDC
KEMET C410C752G3G5TA	7500 pF	Through Hole	Low ESL	Straight	General Purpose	0.17 in	0.095 in	2.41 mm	4.32 mm	2 %	Axial	C0G NP0	-55 C	125 °C	25 VDC
KEMET C410C511G3G5TA7200	510 pF	Through Hole	Low ESL	Straight	General Purpose	0.17 in	0.095 in	2.41 mm	4.32 mm	2 %	Axial	C0G NP0	-55 C	125 °C	25 VDC
KEMET C410C109BAG5TA7200	1 pF	Through Hole	Low ESL	Straight	General Purpose	0.17 in	0.095 in	2.41 mm	4.32 mm	0.1 pF	Axial	C0G NP0	-55 C	125 °C	250 V
KEMET C410C300KAG5TA7200	30 pF	Through Hole	Low ESL	Straight	General Purpose	0.17 in	0.095 in	2.41 mm	4.32 mm	10 %	Axial	C0G NP0	-55 C	125 °C	250 V
KEMET C410C432J3G5TA	4300 pF	Through Hole	Low ESL	Straight	General Purpose	0.17 in	0.095 in	2.41 mm	4.32 mm	5 %	Axial	C0G NP0	-55 C	125 °C	25 VDC
