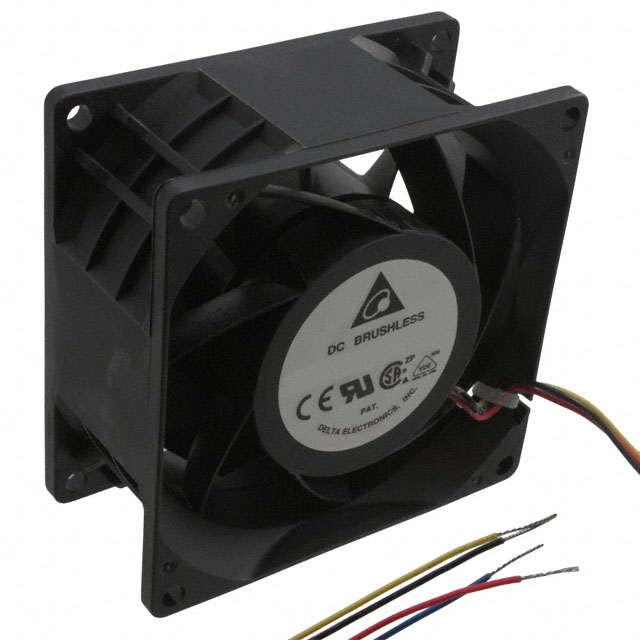

PFB0824 Series

Catalog

FAN AXIAL 80X38MM 24VDC WIRE

Part	Lifetime @ Temp.	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Material - Frame	Bearing Type	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Width [y]	Power (Watts)	Features	Approval Agency	Termination	Weight	Weight	Noise	RPM	Fan Type	Voltage - Rated	Air Flow	Air Flow	Static Pressure	Static Pressure	Ingress Protection
Delta Electronics PFB0824DHE-T50F	40 °C 50000 Hrs	1.35 A	14 VDC	26.4 VDC	Plastic	Plastic	Ball	80 mm	80 mm	-10 °C	60 °C	38 mm	32.4 W	Locked Rotor Protection Speed Sensor (Tach)	CE CSA UL VDE	3 Wire Leads	205.02 g	0.452 lb	65 dB	9000 RPM	Tubeaxial	24 VDC	3.71 mł/min	132.6 CFM	2.03 in H2O	505.7 Pa

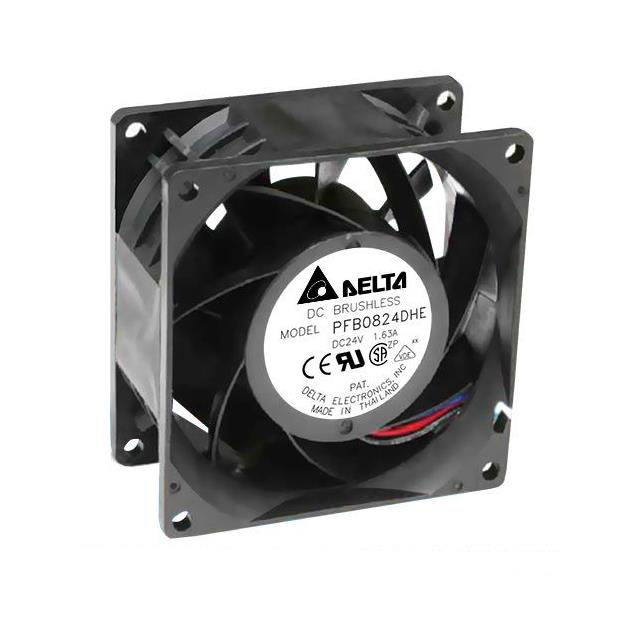

Delta Electronics PFB0824DHE	40 °C 50000 Hrs	1.35 A	14 VDC	26.4 VDC	Plastic	Plastic	Ball	80 mm	80 mm	-10 °C	60 °C	38 mm	32.4 W		CE CSA UL VDE	2 Wire Leads	205.02 g	0.452 lb	65 dB	9000 RPM	Tubeaxial	24 VDC	3.71 mł/min	132.6 CFM	2.03 in H2O	505.7 Pa

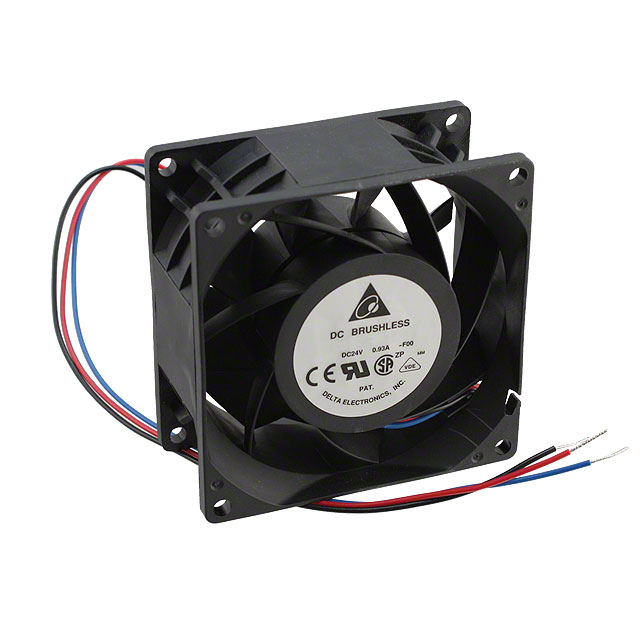

Delta Electronics PFB0824UHE-F00	40 °C 50000 Hrs	770 mA	14 VDC	26.4 VDC	Plastic	Plastic	Ball	80 mm	80 mm	-10 °C	60 °C	38 mm	18.48 W	Locked Rotor Protection Speed Sensor (Tach)	CE CSA UL VDE	3 Wire Leads	200.03 g	0.441 lb	61 dB(A)	7500 RPM	Tubeaxial	24 VDC	3 m³/min	107.3 CFM	1.368 in H2O	340.8 Pa

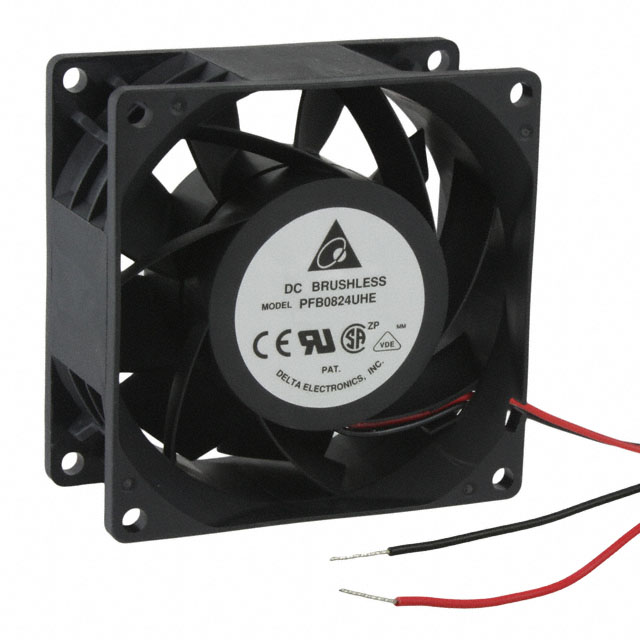

Delta Electronics PFB0824UHE-T500	40 °C 50000 Hrs	770 mA	14 VDC	26.4 VDC	Plastic	Plastic	Ball	80 mm	80 mm	-10 °C	60 °C	38 mm	18.48 W		CE CSA UL VDE	2 Wire Leads	200.03 g	0.441 lb	61 dB(A)	7500 RPM	Tubeaxial	24 VDC	3 m³/min	107.3 CFM	1.368 in H2O	340.8 Pa	IP55 - Dust Protected Water Resistant
Delta Electronics PFB0824DHEYDG	40 °C 50000 Hrs	1.35 A	12	27.6 VDC	Plastic	Plastic	Ball	80 mm	80 mm	-20 ░C	70 °C	38 mm	32.4 W	Locked Rotor Protection PWM Control Speed Sensor (Tach)	CE CSA UL VDE	4 Wire Leads	200.03 g	0.441 lb	65 dB	9000 RPM	Tubeaxial	24 VDC	3.71 mł/min	132.6 CFM	2.03 in H2O	505.7 Pa
