833-050 Series
Manufacturer: EDAC Inc.
Beta
⌘K

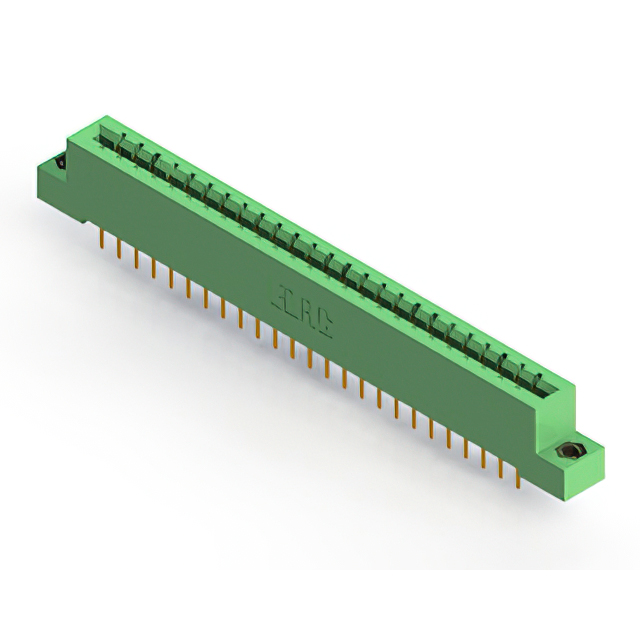

CONN EDGE DUAL FMALE 50POS 0.156
| Part | Termination Rows [custom] | Material - Insulation | Number of Positions | Number of Rows [custom] | Color | Number of Positions/Bay/Row | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Card Type | Card Thickness [Max] | Card Thickness [Min] | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Read Out | Contact Material | Contact Finish | Pitch | Pitch | Gender | Features | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 50 | 2 | Green | 25 | Cantilever | 125 °C | -40 C | Wire Wrap | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Through Hole | Dual | Copper Alloy | Gold | 3.96 mm | 0.156 in | Female | ||||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 50 | 2 | Green | 25 | Cantilever | 125 °C | -40 C | Solder | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Board Edge Straddle Mount | Dual | Copper Alloy | Gold | 3.96 mm | 0.156 in | Female | Card Extender | M3 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 50 | 2 | Green | 25 | Cantilever | 125 °C | -40 C | Wire Wrap | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Through Hole | Dual | Copper Alloy | Gold | 3.96 mm | 0.156 in | Female | 4-40 Threaded Insert Top Mount Opening | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 50 | 2 | Green | 25 | Cantilever | 125 °C | -40 C | Solder | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Board Edge Straddle Mount | Dual | Copper Alloy | Gold | 3.96 mm | 0.156 in | Female | Card Extender | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 50 | 2 | Green | 25 | Cantilever | 125 °C | -40 C | Solder | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Through Hole | Dual | Copper Alloy | Gold | 3.96 mm | 0.156 in | Female | Flush Mount M3 Threaded Insert Top Opening | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 50 | 2 | Green | 25 | Cantilever | 125 °C | -40 C | Wire Wrap | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Through Hole | Dual | Copper Alloy | Gold | 3.96 mm | 0.156 in | Female | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 50 | 2 | Green | 25 | Cantilever | 125 °C | -40 C | Solder | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Right Angle Through Hole | Dual | Copper Alloy | Gold | 3.96 mm | 0.156 in | Female | 3.96 mm | 0.156 " | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 50 | 2 | Green | 25 | Cantilever | 125 °C | -40 C | Solder | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Board Edge Straddle Mount | Dual | Copper Alloy | Gold | 3.96 mm | 0.156 in | Female | Card Extender | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 " |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 50 | 2 | Green | 25 | Cantilever | 125 °C | -40 C | Solder | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Through Hole | Dual | Copper Alloy | Gold | 3.96 mm | 0.156 in | Female | M3 Threaded Insert Top Mount Opening | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 50 | 2 | Green | 25 | Cantilever | 125 °C | -40 C | Solder | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Board Edge Straddle Mount | Dual | Copper Alloy | Gold | 3.96 mm | 0.156 in | Female | Card Extender | Flush Mount M3 Threaded Insert Top Opening |
