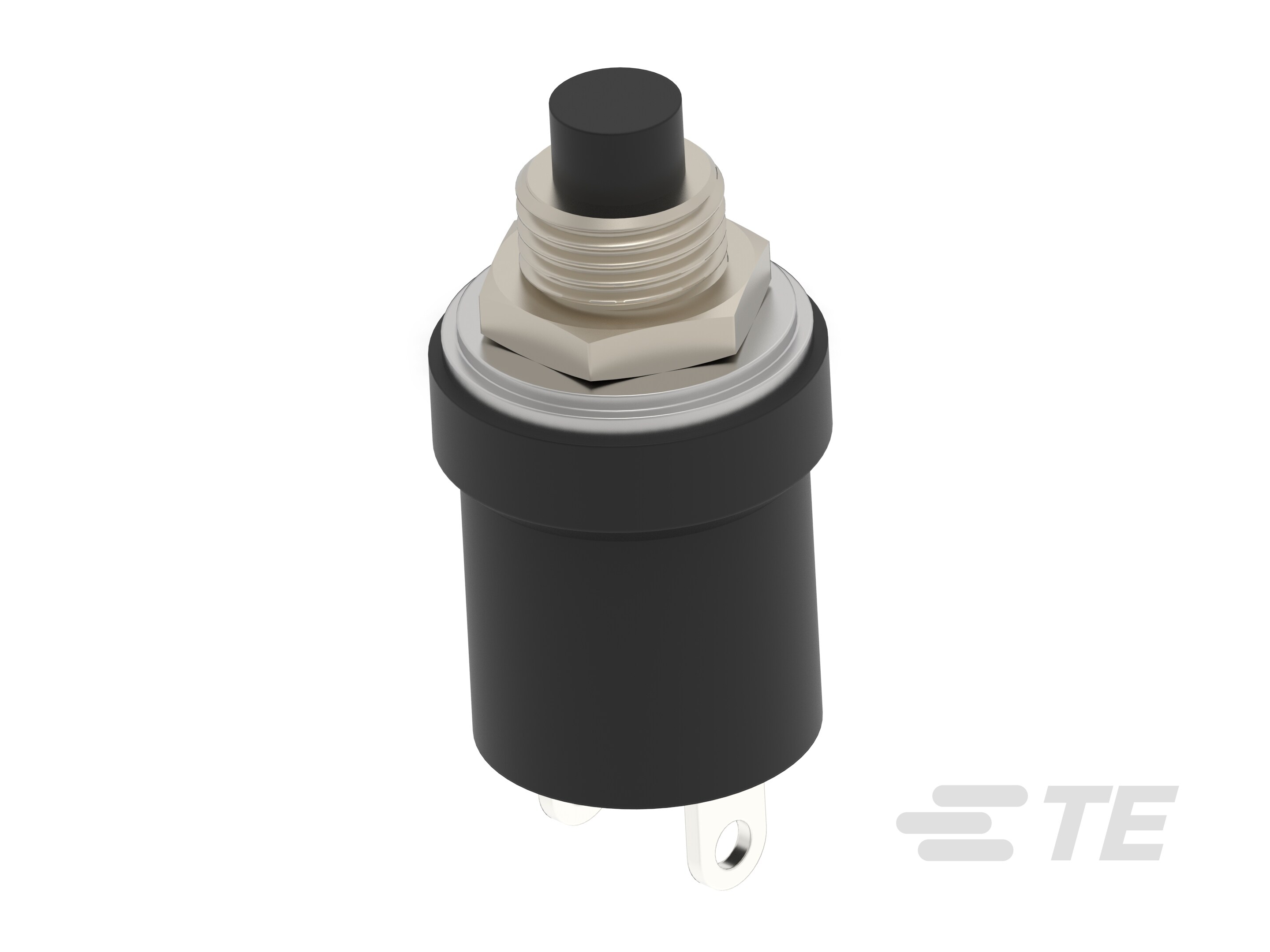

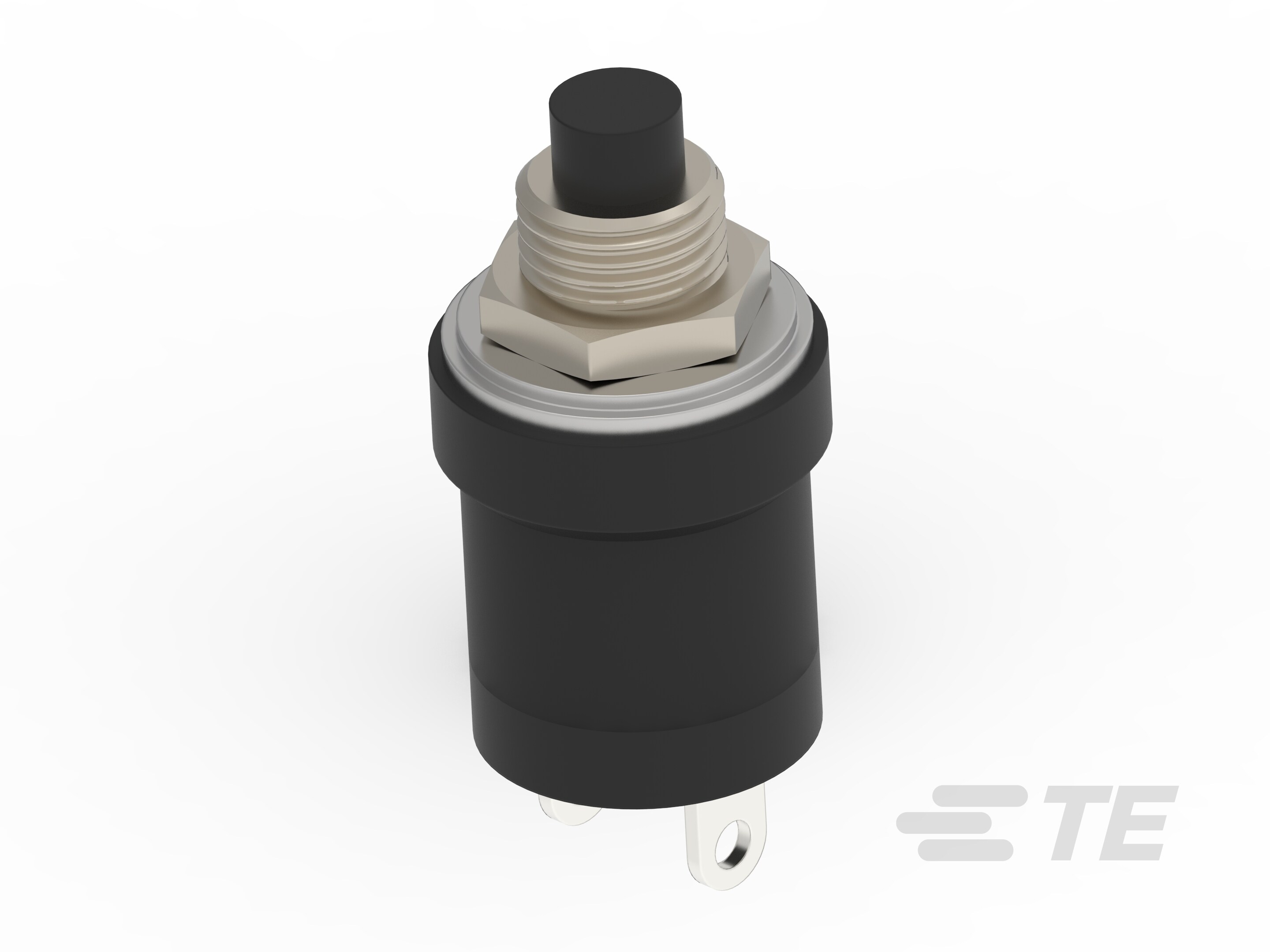

ALCOSWITCH MSP3 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
SWITCH PUSH BUTTON N.C. SPST ROUND PLUNGER 3A 125VAC MOMENTARY PANEL MOUNT SOLDER LUG BULK
| Part | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Panel Cutout Dimensions [diameter] | Switch Function | Color - Actuator/Cap | Actuator Type | Actuator Marking | Type | Termination Style | Mounting Type | Current Rating (Amps) | Electrical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | SPST-NC | 80 °C | -20 ░C | 125 V | 0.25 in | On-Mom | Black | Plunger for Cap | No Marking | Standard | Solder Lug | Panel Mount Rear | 3 A | |
 TE Connectivity AMP Connectors | SPST-NO | 80 °C | -20 ░C | 125 V | 0.25 in | Off-Mom | Red | Plunger for Cap | No Marking | Standard | Solder Lug | Panel Mount Rear | 3 A | 5000 Steps |
 TE Connectivity AMP Connectors | SPST-NO | 80 °C | -20 ░C | 125 V | 0.25 in | Off-Mom | Black | Plunger for Cap | No Marking | Standard | Solder Lug | Panel Mount Rear | 3 A | |
 TE Connectivity AMP Connectors | SPST-NO | 80 °C | -20 ░C | 125 V | 0.25 in | Off-Mom | Red | Plunger for Cap | No Marking | Standard | Solder Lug | Panel Mount Rear | 3 A |
