BM14B-GH Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

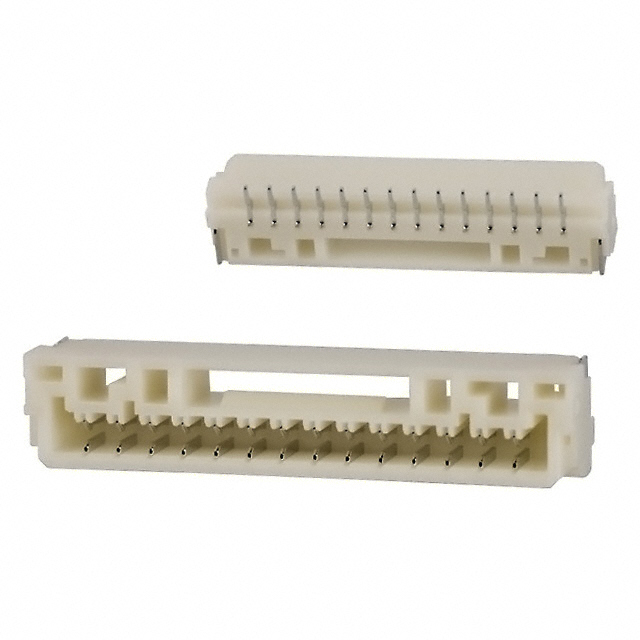

CONN HEADER SMD 14POS 1.25MM
| Part | Mated Stacking Heights | Number of Positions | Shrouding | Material Flammability Rating | Style | Contact Material | Contact Type | Contact Finish - Post | Termination | Voltage Rating | Contact Shape | Pitch - Mating | Pitch - Mating | Number of Rows | Insulation Color | Fastening Type | Features | Mounting Type | Connector Type | Insulation Material | Number of Positions Loaded | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 7.3 mm | 14 | Shrouded - 4 Wall | UL94 V-0 | Board to Cable/Wire | Phosphor Bronze | Outer Shroud Contact | Tin | Solder | 50 V | Rectangular | 0.049 in | 1.25 mm | 1 | Natural | Locking Ramp | Pick and Place Solder Retention | Surface Mount | Header | Nylon 9T Polyamide (PA9T) | All | 85 °C | -25 °C | 4.05 mm | 0.159 in |
