P51 Series

Catalog

CONN RCPT 40POS 0.05 GOLD PCB

Part	Contact Finish Thickness - Post	Insulation Material	Contact Material	Number of Positions Loaded	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Material Flammability Rating	Insulation Height	Insulation Height	Current Rating (Amps)	Contact Finish - Post	Connector Type	Number of Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Termination	Mounting Type	Voltage Rating	Pitch - Mating	Pitch - Mating	Contact Type	Contact Length - Post	Contact Length - Post	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Height Above Board [z]	Height Above Board [z]
3M Electronic Specialty P51-040S-S1-TGF	Flash	Glass Filled Nylon Polyamide (PA)	Phosphor Bronze	All	Black	0.25 µm	10 µin	Gold	UL94 V-0	10.7 mm	0.421 "	0.5 A	Gold	Receptacle	2	-55 C	85 °C	40	Solder	Through Hole	650 VAC	1.27 mm	0.05 in	Center Strip Contact	0.118 in	3 mm
3M Electronic Specialty P51-040S-S1-EA														Socket Outer Shroud Contacts	2			40		Through Hole							0.05 in	1.27 mm	0.25 Ám	10 Áin	Gold	10.7 mm	0.421 in

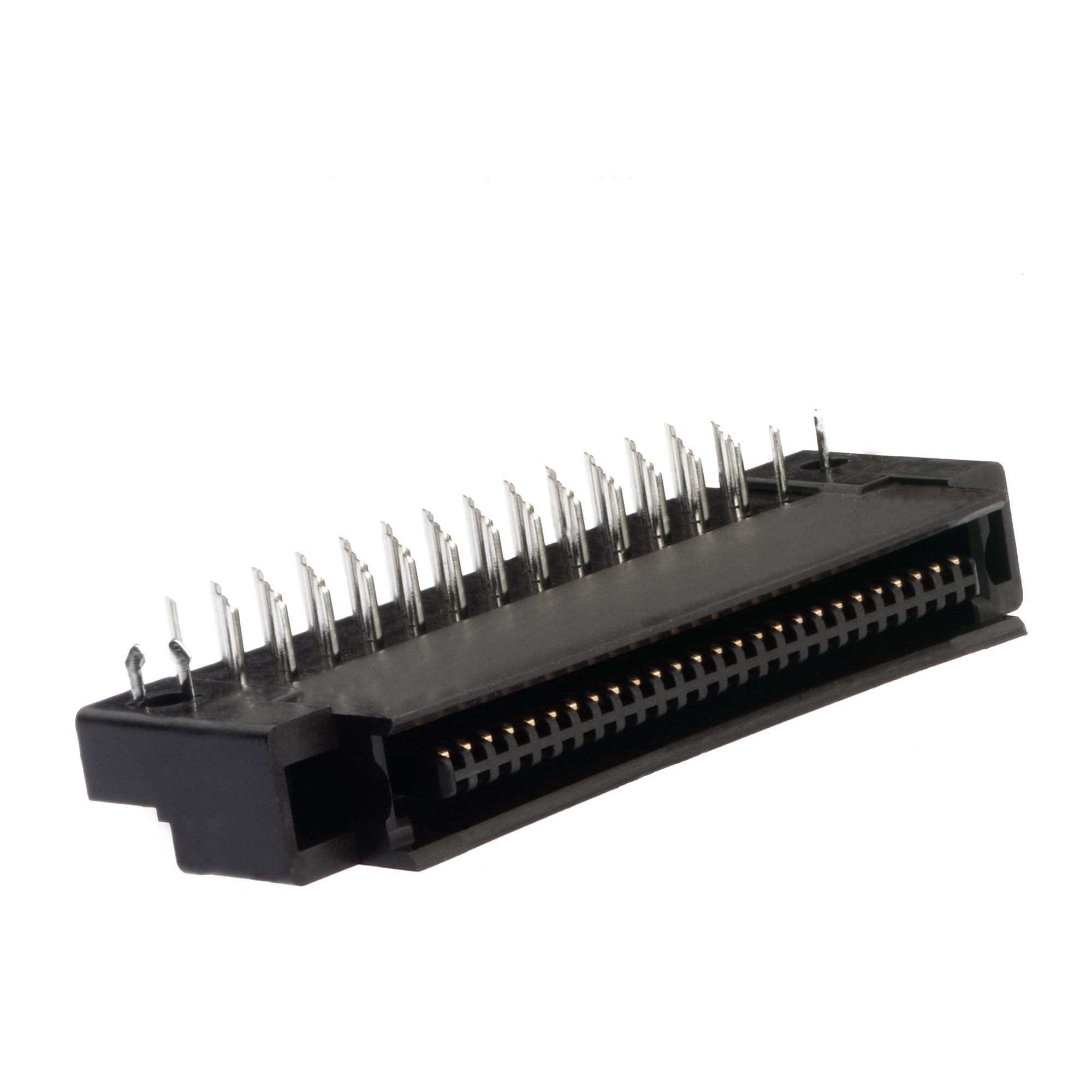

3M Electronic Specialty P51-068P-SR1-EA															2			68 positions		Right Angle Through Hole							0.05 in	1.27 mm	2.54 µm	100 µin	Gold	7.01 mm	0.276 in
3M Electronic Specialty P51-080S-S1-EA														Socket Outer Shroud Contacts	2			80		Through Hole							0.05 in	1.27 mm	0.25 Ám	10 Áin	Gold	10.7 mm	0.421 in
