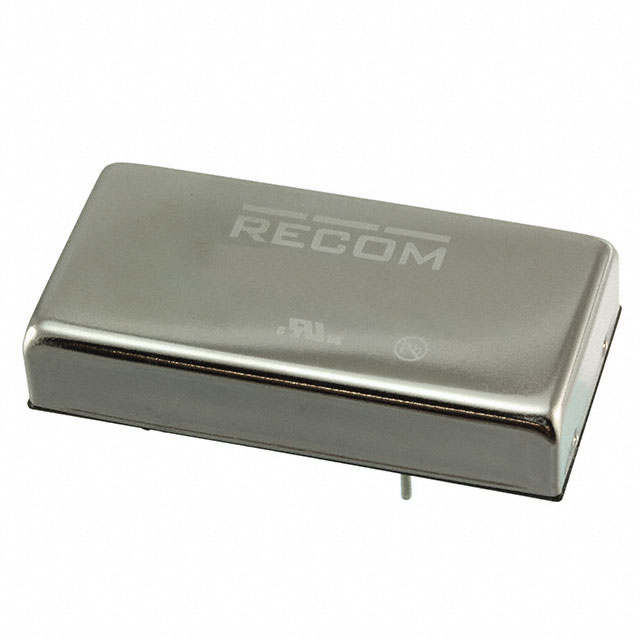

REC20-S_DZ Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 20W 18-75VIN 12VOUT 1667MA

Part	Number of Outputs	Package / Case	Voltage - Output 1	Size / Dimension	Applications	Current - Output (Max) [Max]	Power (Watts)	Voltage - Input (Max) [Max]	Control Features	Voltage - Input (Min) [Min]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Type	Voltage - Isolation	Current - Output (Max)	Efficiency	Voltage - Output 2	Current - Output (Max)

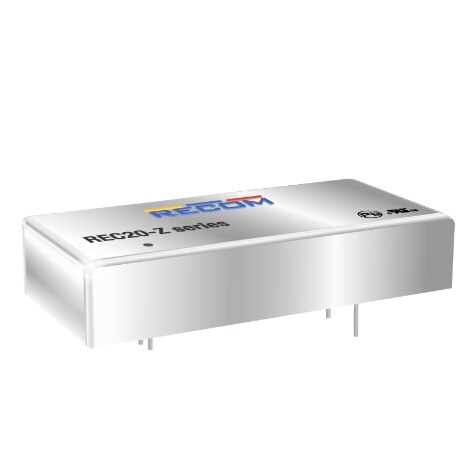

Recom Power REC20-4812SZ	1	6-DIP Module	12 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	ITE (Commercial)	1.667 A	20 W	75 V	Active High Enable	18 V	Through Hole	-40 C	100 °C	OVP Remote On/Off SCP UVLO	Isolated Module	1.6 kV
Recom Power REC20-483.4SZ	1	6-DIP Module	3.4 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	ITE (Commercial)		20 W	75 V	Active High Enable	18 V	Through Hole	-40 C	100 °C	OVP Remote On/Off SCP UVLO	Isolated Module	1.6 kV	5 A	88 %
Recom Power REC20-243.4SZ	1	6-DIP Module	3.4 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	ITE (Commercial)		20 W	36 V	Active High Enable	9 V	Through Hole	-40 C	100 °C	OVP Remote On/Off SCP UVLO	Isolated Module	1.6 kV	5 A	88 %
Recom Power REC20-245.1SZ	1	6-DIP Module	5.1 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	ITE (Commercial)	4 A	20 W	36 V	Active High Enable	9 V	Through Hole	-40 C	100 °C	OVP Remote On/Off SCP UVLO	Isolated Module	1.6 kV		90 %
Recom Power REC20-4805DZ	2	6-DIP Module	5 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	ITE (Commercial)	2 A	20 W	75 V	Active High Enable	18 V	Through Hole	-40 C	100 °C	OVP Remote On/Off SCP UVLO	Isolated Module	1.6 kV		87 %	-5 V
Recom Power REC20-4812DZ	2	6-DIP Module	12 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	ITE (Commercial)		20 W	75 V	Active High Enable	18 V	Through Hole	-40 C	100 °C	OVP Remote On/Off SCP UVLO	Isolated Module	1.6 kV	835 mA	90 %	-12 V	835 mA
Recom Power REC20-2412SZ	1	6-DIP Module	12 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	ITE (Commercial)	1.67 A	20 W	36 V	Active High Enable	9 V	Through Hole	-40 C	100 °C	OVP Remote On/Off SCP UVLO	Isolated Module	1.6 kV

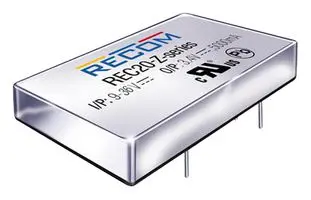

Recom Power REC20-2415SZ	1	6-DIP Module	15 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	ITE (Commercial)	1.33 A	20 W	36 V	Active High Enable	9 V	Through Hole	-40 C	100 °C	OVP Remote On/Off SCP UVLO	Isolated Module	1.6 kV		89 %
Recom Power REC20-485.1SZ	1	6-DIP Module	5.1 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	ITE (Commercial)	4 A	20 W	75 V	Active High Enable	18 V	Through Hole	-40 C	100 °C	OVP Remote On/Off SCP UVLO	Isolated Module	1.6 kV		90 %
Recom Power REC20-2415DZ	2	6-DIP Module	15 V	0.4 in 10.2 mm 25.4 mm 50.8 mm	ITE (Commercial)		20 W	36 V	Active High Enable	9 V	Through Hole	-40 C	100 °C	OVP Remote On/Off SCP UVLO	Isolated Module	1.6 kV	667 mA	89 %	-15 V	667 mA
