LCBS-7 Series

Catalog

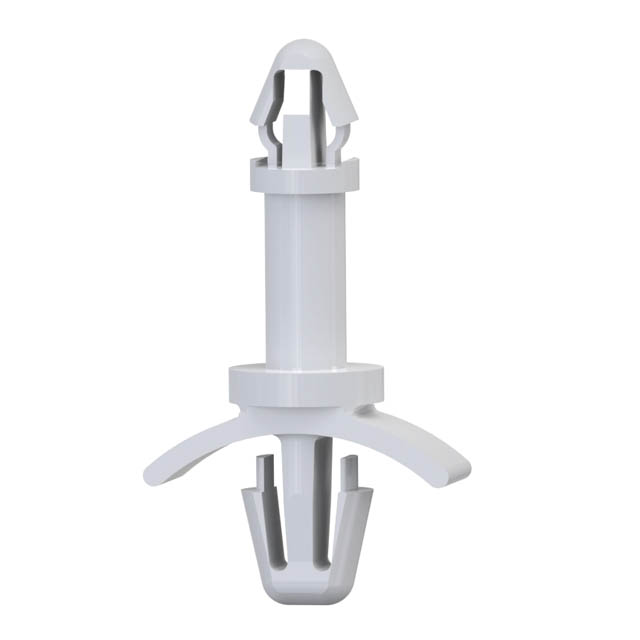

BRD SPT SNAP LOCK NYLON 7/8"

Part	Material	Holding Type	Mounting Type	Between Board Height	Between Board Height	Between Board Height	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Support Panel Thickness [custom]	Support Panel Thickness [custom]	Features	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Max]	Mounting Panel Thickness [Max]	Between Board Height
Essentra Components LCBS-7-14-19	Nylon	Snap Lock	Snap Lock	22.23 mm	0.875 in	0.875 in	0.1875 in	0.187 in	4.75 mm	3.99 mm	0.157 "	1.6 mm	0.063 in	Winged	0.79 mm	0.031 in	0.078 "	1.98 mm
Essentra Components LCBS-7-5-19	Nylon	Snap Lock	Snap Lock	7.95 mm	0.3125 in	0.313 in	0.1875 in	0.187 in	4.75 mm	3.99 mm	0.157 "	1.6 mm	0.063 in	Winged	0.79 mm	0.031 in	0.078 "	1.98 mm
Essentra Components LCBS-7-20-01	Nylon	Snap Lock	Snap Lock	31.75 mm		1.25 in	0.1875 in	0.187 in	4.75 mm	3.99 mm	0.157 "	1.6 mm	0.063 in	Winged	0.79 mm	0.031 in	0.078 "	1.98 mm
Essentra Components LCBS-7-10-01	Nylon	Snap Lock	Snap Lock	15.88 mm	5 8	0.625 in	0.1875 in	0.187 in	4.75 mm	3.99 mm	0.157 "	1.6 mm	0.063 in	Winged	0.79 mm	0.031 in	0.078 "	1.98 mm
Essentra Components LCBS-7-20-19	Nylon	Snap Lock	Snap Lock	31.75 mm		1.25 in	0.1875 in	0.187 in	4.75 mm	3.99 mm	0.157 "	1.6 mm	0.063 in	Winged	0.79 mm	0.031 in	0.078 "	1.98 mm
Essentra Components LCBS-7-22-01	Nylon	Snap Lock	Snap Lock		34.93 mm	1.375 in	0.1875 in	0.187 in	4.75 mm	3.99 mm	0.157 "	1.6 mm	0.063 in	Winged	0.79 mm	0.031 in	0.078 "	1.98 mm	1 3/8
Essentra Components LCBS-7-7-01	Nylon	Snap Lock	Snap Lock	11.13 mm	0.4375 "	0.438 in	0.1875 in	0.187 in	4.75 mm	3.99 mm	0.157 "	1.6 mm	0.063 in	Winged	0.79 mm	0.031 in	0.078 "	1.98 mm
Essentra Components LCBS-7-4-19	Nylon	Snap Lock	Snap Lock	0.25 in		6.35 mm	0.1875 in	0.187 in	4.75 mm	3.99 mm	0.157 "	1.6 mm	0.063 in	Winged	0.79 mm	0.031 in	0.078 "	1.98 mm
Essentra Components LCBS-7-8-19	Nylon	Snap Lock	Snap Lock	12.7 mm	0.5 in	0.5 in	0.1875 in	0.187 in	4.75 mm	3.99 mm	0.157 "	1.6 mm	0.063 in	Winged	0.79 mm	0.031 in	0.078 "	1.98 mm
Essentra Components LCBS-7-16-01	Nylon	Snap Lock	Snap Lock	25.4 mm		1 in	0.1875 in	0.187 in	4.75 mm	3.99 mm	0.157 "	1.6 mm	0.063 in	Winged	0.79 mm	0.031 in	0.078 "	1.98 mm
