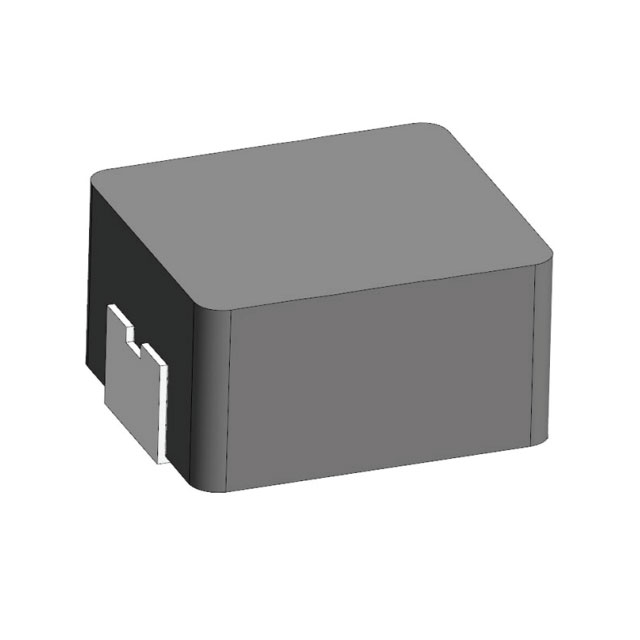

AMDLA3020Q Series
Manufacturer: Abracon LLC
Beta
⌘K
FIXED IND 1UH 5A 30 MOHM SMD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Shielding | Type | Ratings | Tolerance | Current - Saturation (Isat) | Inductance Frequency - Test | Inductance | Mounting Type | DC Resistance (DCR) [Max] | Package / Case | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Material - Core | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Abracon LLC | -55 C | 125 °C | 5 A | Shielded | Molded | AEC-Q200 | 20 % | 5.5 A | 1 MHz | 1 µH | Surface Mount | 36 mOhm | Nonstandard | 0.079 in | 2 mm | 0.134 in | 3.4 mm | 0.118 in | 3 mm | Metal | |
 Abracon LLC | -55 C | 125 °C | 1.2 A | Shielded | Molded | AEC-Q200 | 20 % | 1.4 A | 1 MHz | 10 µH | Surface Mount | Nonstandard | 0.079 in | 2 mm | 0.134 in | 3.4 mm | 0.118 in | 3 mm | Metal | 260 mOhm |
