170072 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

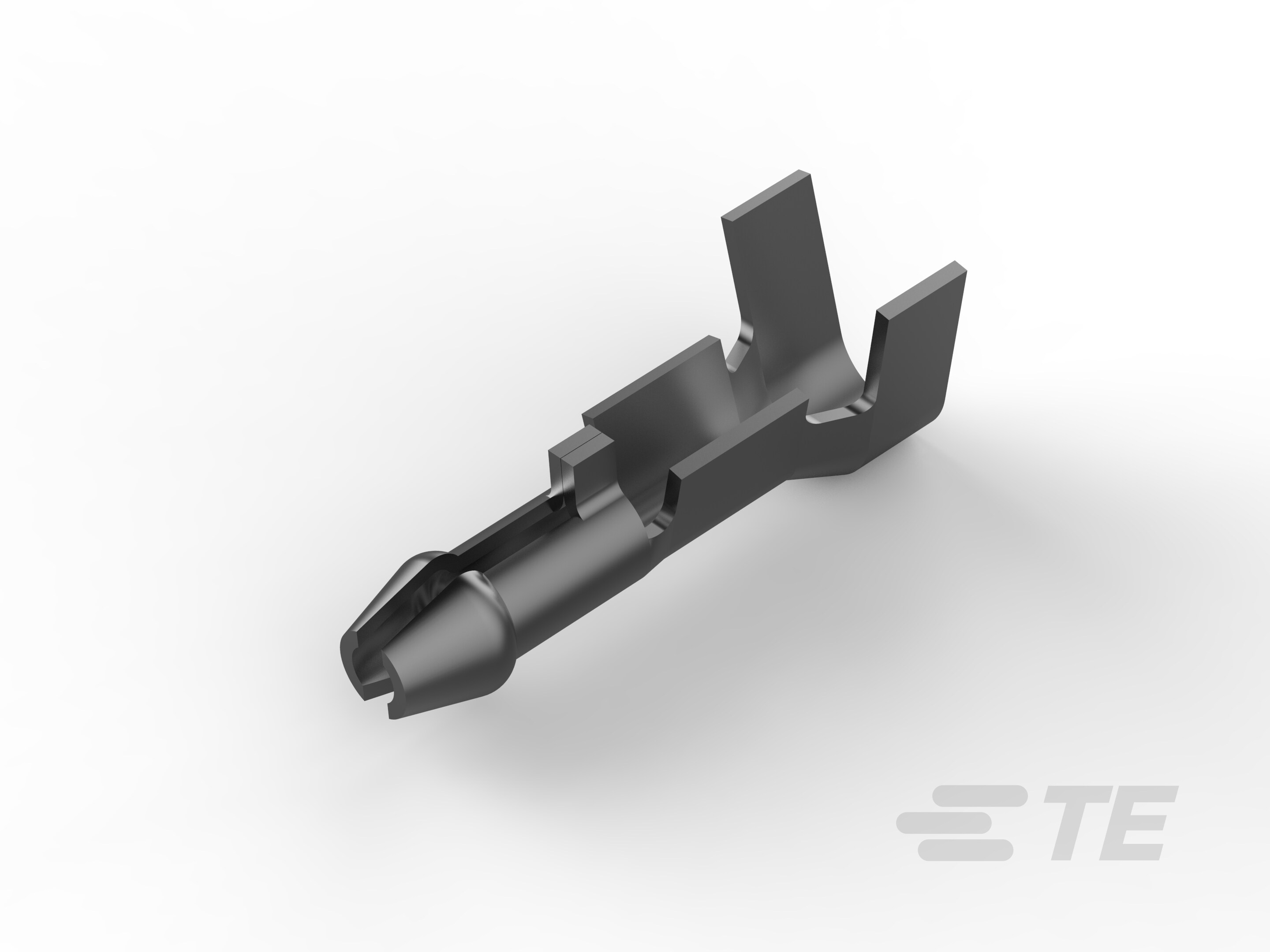

CONN TERM WTB 20-24AWG TIN
| Part | Contact Finish | Length - Overall [x] | Length - Overall | Terminal Type | Hole Diameter [Min] | Hole Diameter [Min] | Hole Diameter [Max] | Hole Diameter [Max] | Contact Material | Wire Gauge [Max] | Wire Gauge [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Tin | 0.409 in | 10.39 mm | Through Board | 0.071 in | 1.8 mm | 0.075 " | 1.91 mm | Brass | 24 AWG | 19.5 AWG |
