9526 Series
Manufacturer: Belden Inc.
Beta
⌘K

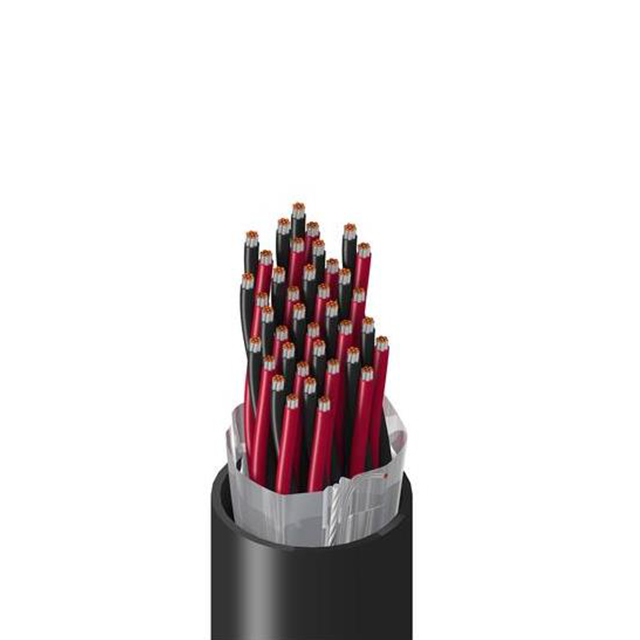

MULTI-PAIR 38COND 22AWG
| Part | Shield Coverage | Shield Material | Wire Gauge | Conductor Material | Jacket Color | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Ratings | Shield Type | Jacket (Insulation) Material | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length | Features | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors [custom] | Number of Conductors | Usage | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | 22 AWG | Copper Tinned | Chrome | Multi-Pair | 0.072 in | 1.829 mm | Poly-Vinyl Chloride (PVC) | UL Style 2464 | Foil | Poly-Vinyl Chloride (PVC) | -30 ░C | 105 ░C | 0.644 " | 16.36 mm | 152.4 m | 500 ft | Drain Wire Flame Retardant Rip Cord | 30 AWG | 7 | 19 | 38 | Instrumentation | 300 VDC |
