T41445 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

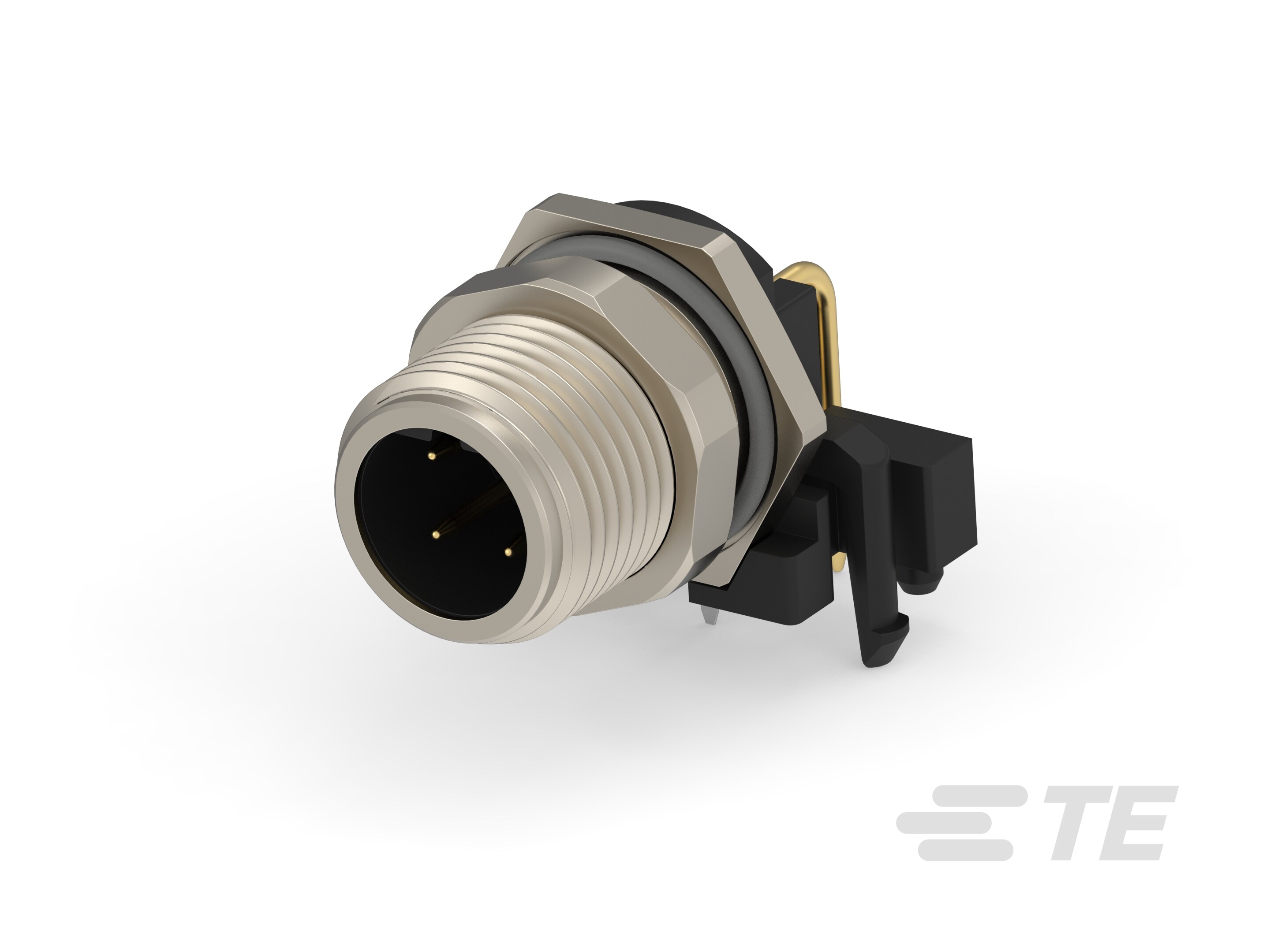

CIRCULAR METRIC CONNECTORS M12 R/A M PNL REAR D-CODE 4P PCBSTD SHLD
| Part | Features | Shell Material | Mounting Feature | Orientation | Color | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Primary Material | Contact Finish - Mating | Mounting Type | Shell Size - Insert | Ingress Protection | Connector Type | Termination | Applications | Shielding | Shell Finish | Fastening Type | Contact Finish Thickness - Mating | Current Rating (Amps) | Insert Material | Contact Material | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Board Guide Board Lock | Brass | Bulkhead - Front Side Nut | D | Silver | 85 °C | -40 C | 4 | Metal | Gold | Panel Mount Right Angle Through Hole | M12-4 | IP67 - Dust Tight Waterproof | Receptacle Male Pins | Solder | Industrial | Shielded | Nickel | Threaded | Flash | 4 A | Nylon 6/6 Polyamide (PA66) | Bronze | 250 V |
