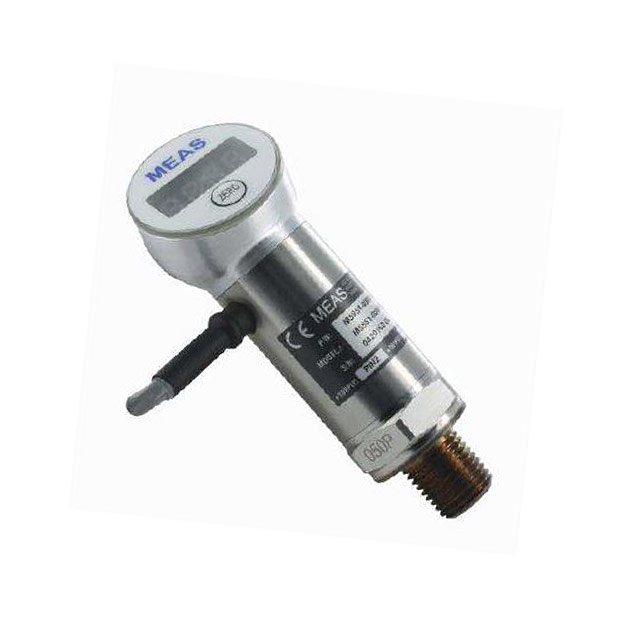

MEAS M5800 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

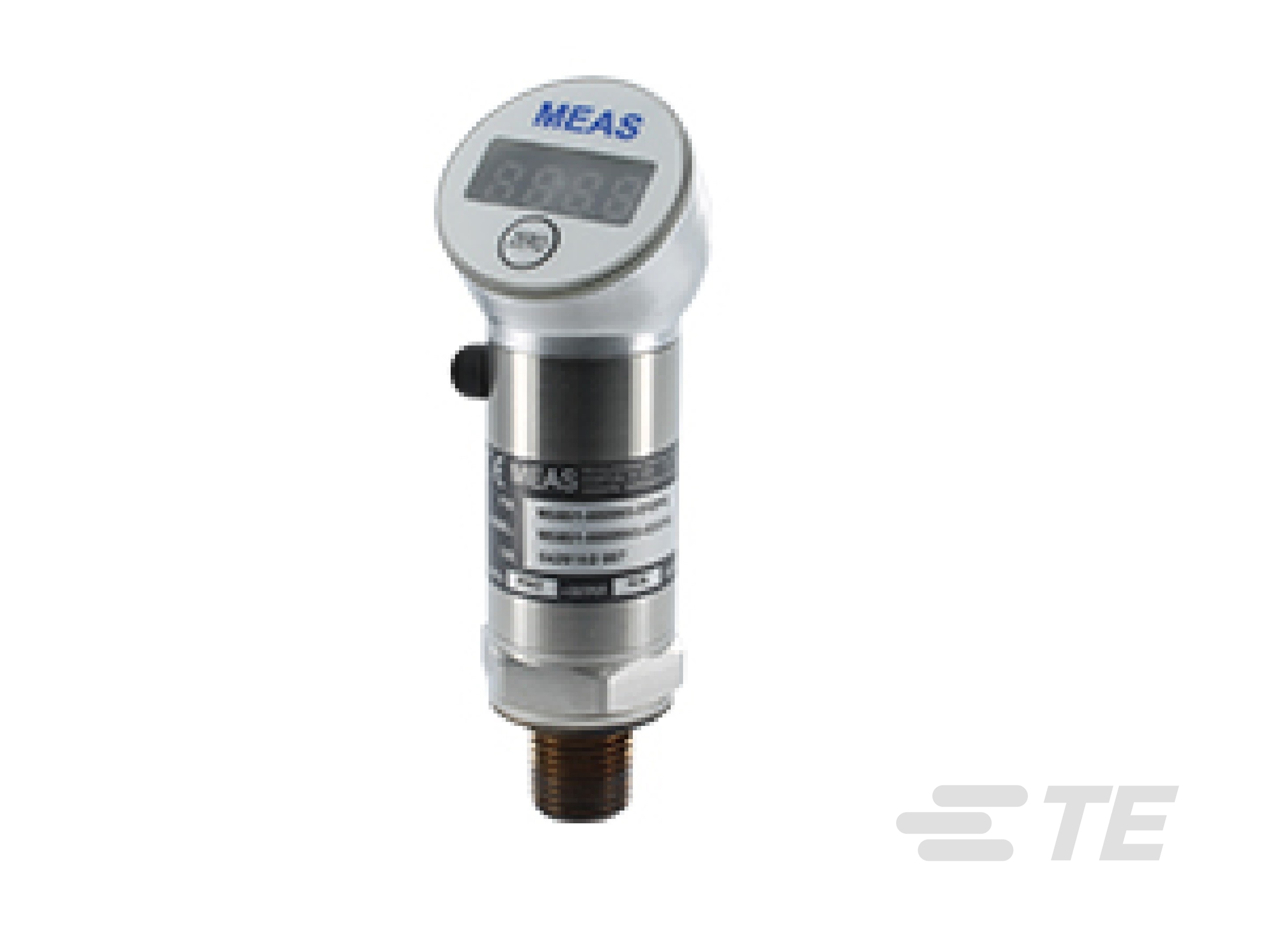

PRESS XDCR M5842-000005-500PG
| Part | Accuracy | Operating Temperature [Max] | Operating Temperature [Min] | Port Size | Port Size | Port Size | Pressure Type | Termination Style | Output Type | Operating Pressure | Operating Pressure | Package / Case | Features | Port Style | Applications | Voltage - Supply [Max] | Voltage - Supply [Min] | Output [Max] | Output [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.25 % | 85 °C | -40 C | Male NPT | 0.25 " | 0.25 in | Gauge | Cable 4' | Analog Voltage | 500 PSI | 3447.38 kPa | Cylinder Metal | Temperature Compensated | Threaded | Industrial Automation | 30 VDC | 8 V | 5 V | 1 V |
 TE Connectivity AMP Connectors | 0.25 % | 85 °C | -40 C | Male NPT | 0.25 " | 0.25 in | Gauge | Cable 4' | Analog Current | 10000 PSI | 68947.57 kPa | Cylinder Metal | Temperature Compensated | Threaded | Industrial Automation | 30 VDC | 12 VDC | 20 mA | 4 mA |
 TE Connectivity AMP Connectors | 0.25 % | 85 °C | -40 C | Male NPT | 0.25 " | 0.25 in | Gauge | Cable 2' | Analog Current | 250 PSI | 1723.69 kPa | Cylinder Metal | Temperature Compensated | Threaded | Industrial Automation | 30 VDC | 12 VDC | 20 mA | 4 mA |
 TE Connectivity AMP Connectors | 0.25 % | 85 °C | -40 C | Male NPT | 0.25 " | 0.25 in | Gauge | Cable 2' | Analog Current | 5000 PSI | 34473.79 kPa | Cylinder Metal | Temperature Compensated | Threaded | Industrial Automation | 30 VDC | 12 VDC | 20 mA | 4 mA |
TE Connectivity AMP Connectors | 0.25 % | 85 °C | -40 C | Male NPT | 0.25 " | 0.25 in | Gauge | Cable 4' | Analog Current | 500 PSI | 3447.38 kPa | Cylinder Metal | Temperature Compensated | Threaded | Industrial Automation | 30 VDC | 12 VDC | 20 mA | 4 mA |
 TE Connectivity AMP Connectors | 0.25 % | 85 °C | -40 C | Male NPT | 0.25 " | 0.25 in | Gauge | Cable 4' | Analog Voltage | 10000 PSI | 68947.57 kPa | Cylinder Metal | Temperature Compensated | Threaded | Industrial Automation | 30 VDC | 8 V | 5 V | 1 V |
