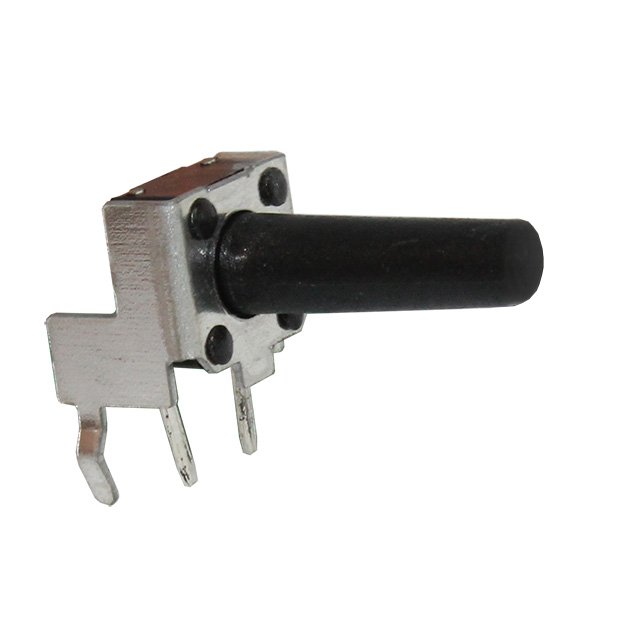

CT1102V9 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 50V

Part	Actuator Material	Switch Travel	Switch Function	Circuit	Termination Style	Contact Rating @ Voltage	Outline [y]	Outline [x]	Illumination	Actuator Length, Right Angle	Actuator Type	Actuator Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Operating Force
CIT Relay and Switch CT1102V9.85F100	Nylon 6/6 Polyamide (PA66)	0.25 mm	Off-Mom	SPST-NO	PC Pin	0.05 A 50 VDC	6.3 mm	7.5 mm	Non-Illuminated	9.85 mm	Plunger for Cap	Side Actuated	85 °C	-40 C	Right Angle Through Hole	100 gf
CIT Relay and Switch CT1102V9.85F260	Nylon 6/6 Polyamide (PA66)	0.25 mm	Off-Mom	SPST-NO	PC Pin	0.05 A 50 VDC	6.3 mm	7.5 mm	Non-Illuminated	9.85 mm	Plunger for Cap	Side Actuated	85 °C	-40 C	Right Angle Through Hole	260 gf
