8827-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT .022-.034 PRESSFIT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Length - Overall [x]	Length - Overall [x]	Accepts Square Pin Size	Accepts Square Pin Size	Mounting Hole Diameter [diameter]	Mounting Hole Diameter	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Min] [diameter]	Accepts Pin Diameter [Min] [diameter]	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Material	Socket Depth	Socket Depth	Tail Type	Contact Finish	Tail Diameter [diameter]	Tail Diameter [diameter]	Termination

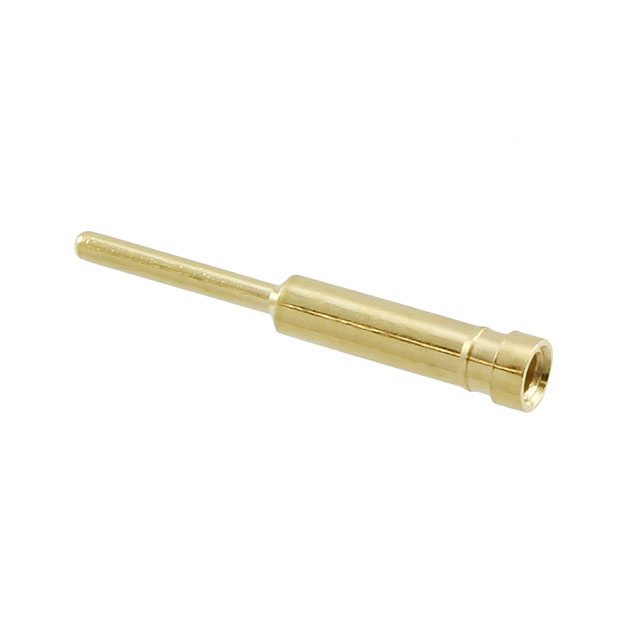

Mill-Max Manufacturing Corp. 8827-0-15-15-16-27-04-0	-55 C	125 °C	0.051 in	1.3 mm	30 Áin	0.76 Ám	12.45 mm	0.49 "	0.025 in	0.64 mm	0.061 "	1.55 mm	0.86 mm	0.034 "	0.022 "	0.56 mm	0.072 "	1.83 mm	Beryllium Copper	0.23 in	5.84 mm	Standard Tail	Gold	0.03 in	0.76 mm	Press-Fit
Mill-Max Manufacturing Corp. 8827-0-15-80-16-27-04-0	-55 C	125 °C	0.051 in	1.3 mm	30 Áin	0.76 Ám	12.45 mm	0.49 "	0.025 in	0.64 mm	0.061 "	1.55 mm	0.86 mm	0.034 "	0.022 "	0.56 mm	0.072 "	1.83 mm	Beryllium Copper	0.23 in	5.84 mm	Standard Tail	Gold	0.03 in	0.76 mm	Press-Fit

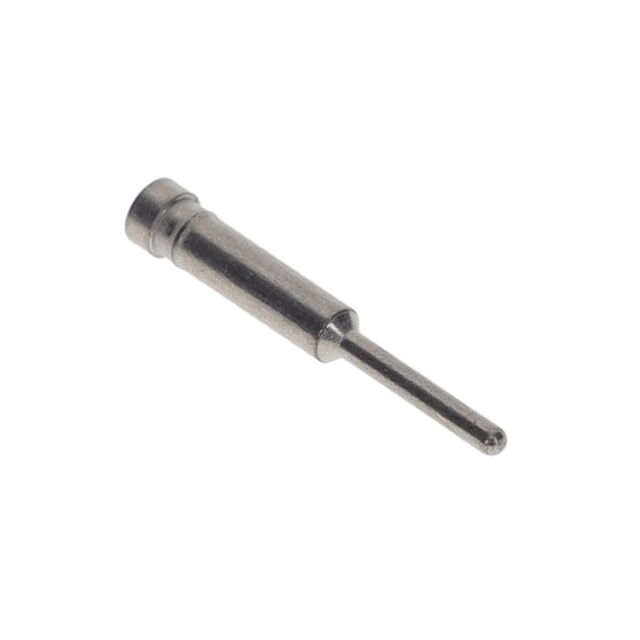

Mill-Max Manufacturing Corp. 8827-0-15-80-16-14-04-0	-55 C	125 °C	0.051 in	1.3 mm	10 Áin	0.25 Ám	12.45 mm	0.49 "	0.025 in	0.64 mm	0.061 "	1.55 mm	0.86 mm	0.034 "	0.022 "	0.56 mm	0.072 "	1.83 mm	Beryllium Copper	0.23 in	5.84 mm	Standard Tail	Gold	0.03 in	0.76 mm	Press-Fit
Mill-Max Manufacturing Corp. 8827-0-15-01-16-14-04-0	-55 C	125 °C	0.051 in	1.3 mm	10 Áin	0.25 Ám	12.45 mm	0.49 "	0.025 in	0.64 mm	0.061 "	1.55 mm	0.86 mm	0.034 "	0.022 "	0.56 mm	0.072 "	1.83 mm	Beryllium Copper	0.23 in	5.84 mm	Standard Tail	Gold	0.03 in	0.76 mm	Press-Fit
