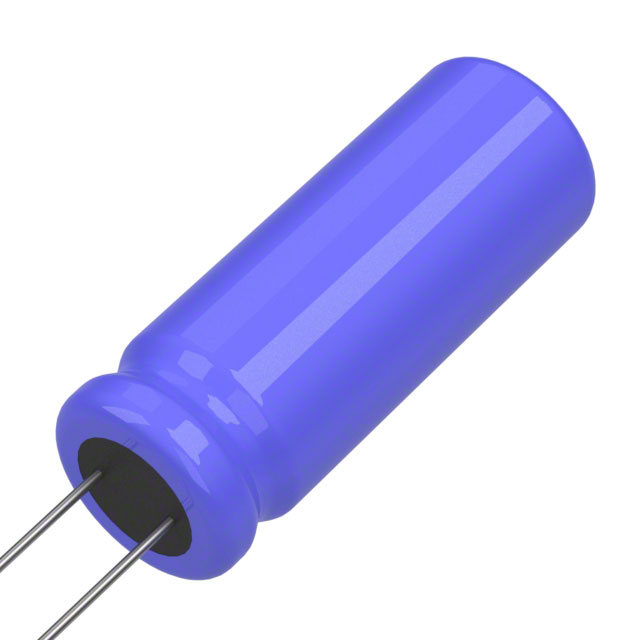

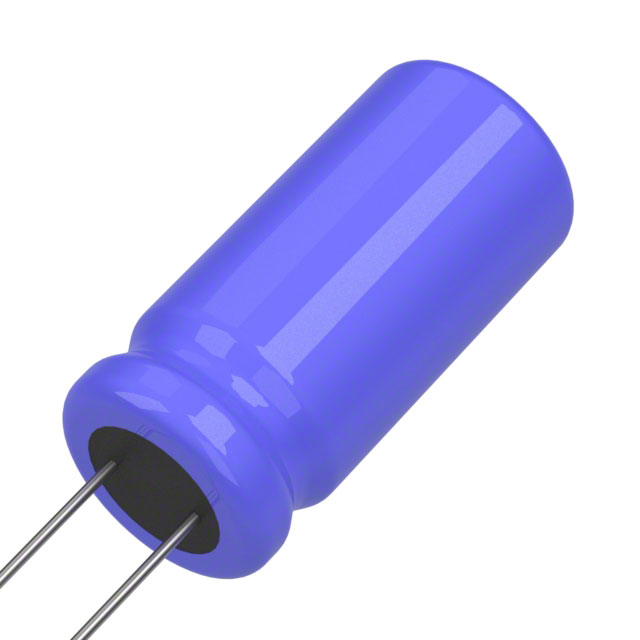

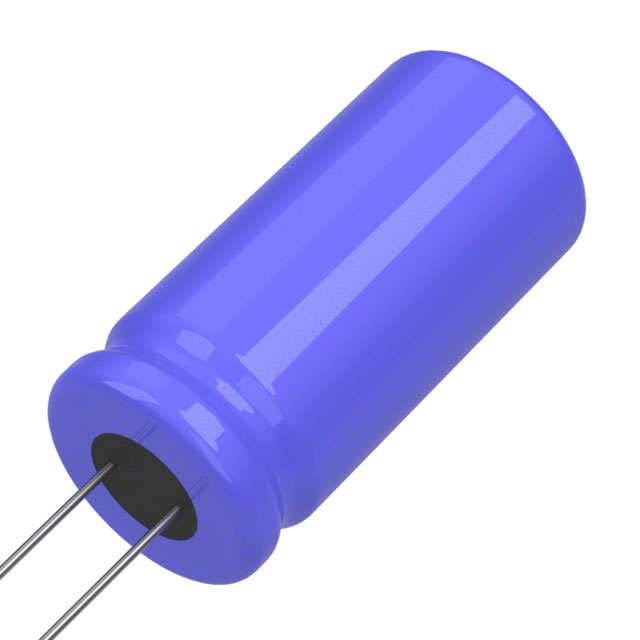

672D Series

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED 33UF 100V

Part	Lead Spacing	Mounting Type	Applications	Polarization	Package / Case	Height - Seated (Max)	Capacitance	Voltage - Rated	Size / Dimension Diameter	Operating Temperature (Min)	Operating Temperature (Max)	ESR (Equivalent Series Resistance)	Impedance	Ripple Current	Tolerance (Negative)	Tolerance (Positive)
Vishay Dale 672D336H100DM5J	0.197 in	Through Hole	General Purpose	Polar	Can Radial	1.161 in	33 µF	100 VAC/DC	0.492 in	-55 °C	105 °C
Vishay Dale 672D107H020CG5IE3	0.197 in	Through Hole	General Purpose	Polar	Can Radial	0.906 in	100 µF	20 V	0.394 in	-55 °C	105 °C
Vishay Dale 672D475H200CG5D	0.197 in	Through Hole	General Purpose	Polar	Can Radial	0.906 in	4.7 µF	200 VDC	0.394 in	-55 °C	105 °C
Vishay Dale 672D396H100DT5C	0.197 in	Through Hole	General Purpose	Polar	Can Radial	1.417 in	39 µF	100 VAC/DC	0.492 in	-55 °C	105 °C
Vishay Dale 672D147H075ET5C	0.295 in	Through Hole	General Purpose	Polar	Can Radial	1.417 in	140 µF	75 V	0.63 in	-55 °C	105 °C
Vishay Dale 672D477H012DM5C	0.197 in	Through Hole	General Purpose	Polar	Can Radial	1.161 in	470 µF	12 VAC	0.492 in	-55 °C	105 °C
Vishay Dale 672D108H7R5ET5J	0.295 in	Through Hole	General Purpose	Polar	Can Radial	1.417 in	1000 µF	7.5 VDC	0.63 in	-55 °C	105 °C
Vishay Dale 672D337F025DT5D	0.197 in	Through Hole	General Purpose	Polar	Can Radial	1.417 in	330 µF	25 VAC	0.492 in	-55 °C	105 °C	290 mOhm	100 mOhm	1.225 A 1.75 A	10 %	50 %
Vishay Dale 672D157H7R5CD5C	0.197 in	Through Hole	General Purpose	Polar	Can Radial	0.74 in	150 µF	7.5 VDC	0.394 in	-55 °C	105 °C
Vishay Dale 672D337F040ET5D	0.295 in	Through Hole	General Purpose	Polar	Can Radial	1.417 in	330 µF	40 V	0.63 in	-55 °C	105 °C	320 mOhm	80 mOhms	1.575 A 2.25 A	10 %	50 %
