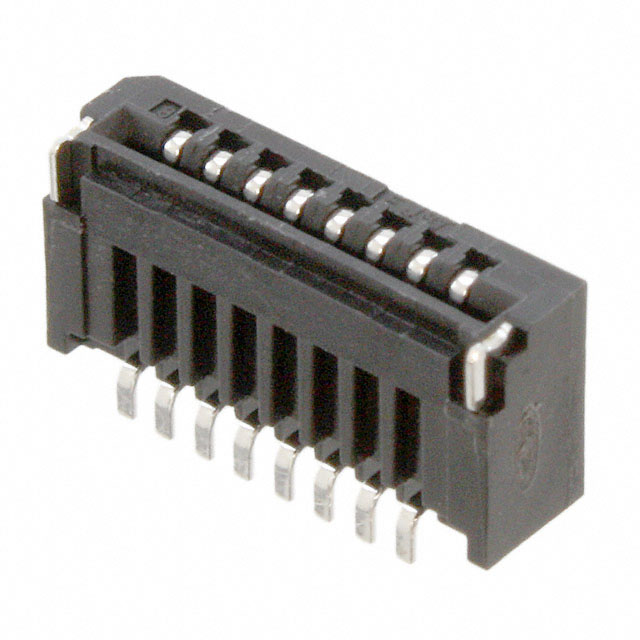

08FMN-SM Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN FFC TOP 8POS 1MM R/A
| Part | Housing Color | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Flat Flex Type | Height Above Board [z] | Height Above Board [z] | Termination | Connector/Contact Type | Housing Material | Number of Positions | Cable End Type | Pitch | Pitch | Features | Contact Material | Contact Finish | FFC, FCB Thickness | Voltage Rating | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Black | 0.5 A | 85 °C | -25 °C | UL94 V-0 | FFC | 0.118 in | 3 mm | Solder | Contacts Top | Nylon 6T Polyamide (PA6T) | 8 | Straight | 1 mm | 0.039 in | Low Insertion Force (LIF) | Phosphor Bronze | Tin | 0.3 mm | 50 V | Right Angle Surface Mount |
