833-022 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE SGL FMALE 22POS 0.156

...

Part	Material - Insulation	Termination Rows	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Number of Rows	Mounting Type	Flange Feature	Contact Material	Gender	Card Thickness [Max]	Card Thickness [Min]	Card Type	Read Out	Contact Finish Thickness	Contact Finish Thickness	Termination	Color	Number of Positions	Contact Finish	Pitch	Pitch	Number of Positions/Bay/Row	Termination Rows [custom]	Number of Rows [custom]	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 833-022-540-107	Diallyl Phthalate (DAP)	1	125 °C	-40 C	Cantilever	1	Through Hole	Flush Mount M3 Threaded Insert Top Opening	Copper Alloy	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Single	0.25 Ám	10 Áin	Wire Wrap	Green	22	Gold	3.96 mm	0.156 in	22
EDAC Inc. 833-022-500-607	Diallyl Phthalate (DAP)	1	125 °C	-40 C	Cantilever	1	Through Hole	M3 Threaded Insert Top Mount Opening	Copper Alloy	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Single	0.25 Ám	10 Áin	Solder Eyelet(s)	Green	22	Gold	3.96 mm	0.156 in	22
EDAC Inc. 833-022-544-202	Diallyl Phthalate (DAP)		125 °C	-40 C	Cantilever		Through Hole	Flush Mount Top Opening Unthreaded	Copper Alloy	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Dual	0.25 Ám	10 Áin	Wire Wrap	Green	22	Gold	3.96 mm	0.156 in	11	2	2	3.25 mm	0.128 "

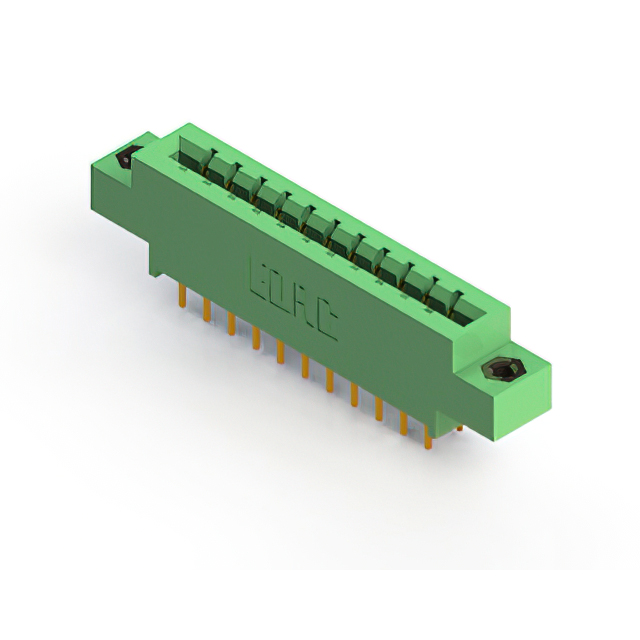

EDAC Inc. 833-022-523-808	Diallyl Phthalate (DAP)		125 °C	-40 C	Cantilever		Through Hole	4-40 Threaded Insert Top Mount Opening	Copper Alloy	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Dual	0.25 Ám	10 Áin	Solder	Green	22	Gold	3.96 mm	0.156 in	11	2	2

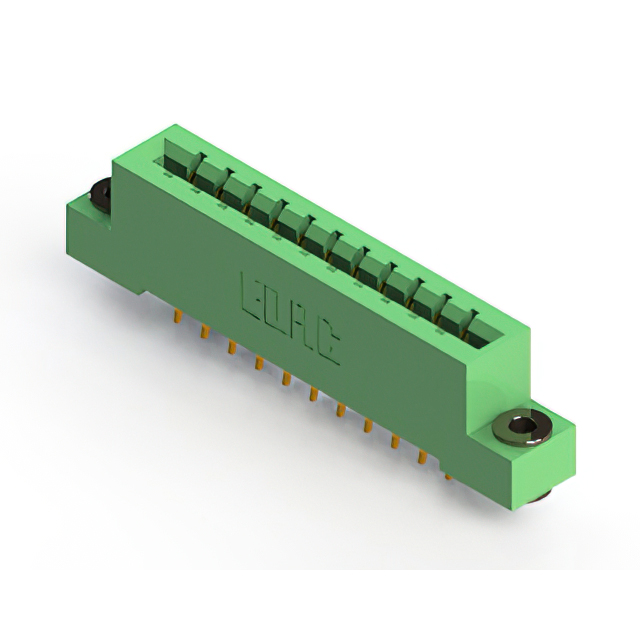

EDAC Inc. 833-022-556-203	Diallyl Phthalate (DAP)		125 °C	-40 C	Cantilever		Board Edge Straddle Mount	Floating Bobbin Flush Mount	Copper Alloy	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Dual	0.25 Ám	10 Áin	Solder	Green	22	Gold	3.96 mm	0.156 in	11	2	2	2.95 mm	0.116 "	Card Extender

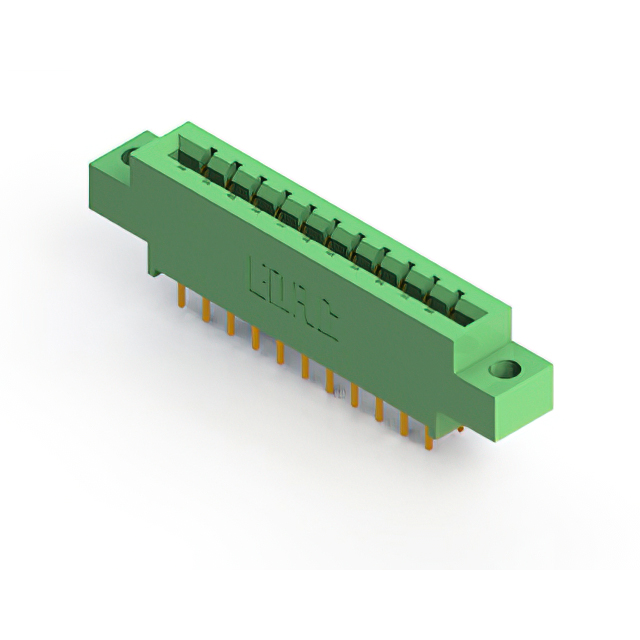

EDAC Inc. 833-022-523-804	Diallyl Phthalate (DAP)		125 °C	-40 C	Cantilever		Through Hole		Copper Alloy	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Dual	0.25 Ám	10 Áin	Solder	Green	22	Gold	3.96 mm	0.156 in	11	2	2	3.96 mm	0.156 "

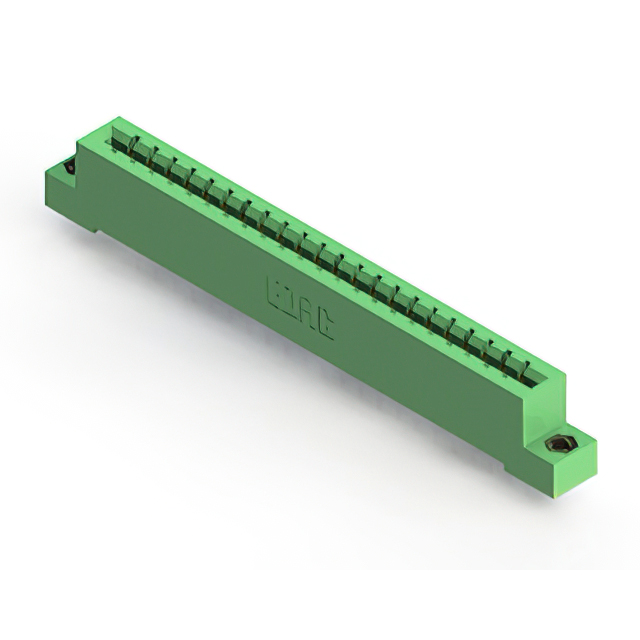

EDAC Inc. 833-022-520-107	Diallyl Phthalate (DAP)	1	125 °C	-40 C	Cantilever	1	Through Hole	Flush Mount M3 Threaded Insert Top Opening	Copper Alloy	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Single	0.25 Ám	10 Áin	Solder	Green	22	Gold	3.96 mm	0.156 in	22

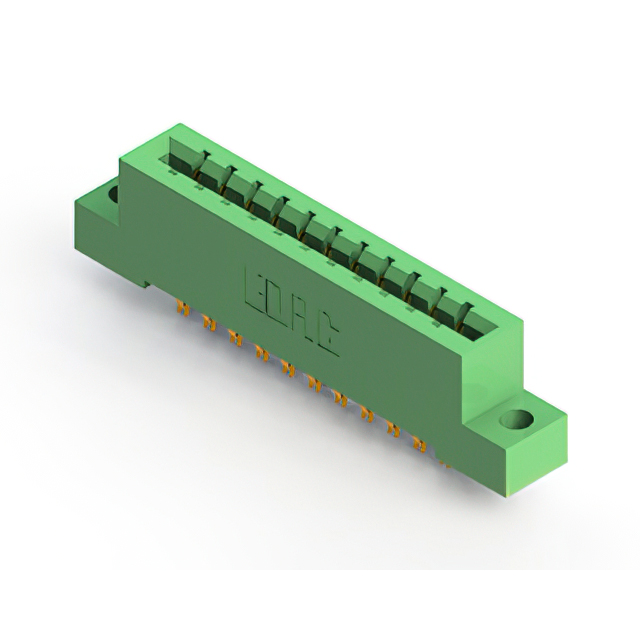

EDAC Inc. 833-022-555-204	Diallyl Phthalate (DAP)		125 °C	-40 C	Cantilever		Board Edge Straddle Mount	Flush Mount Top Opening Unthreaded	Copper Alloy	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Dual	0.25 Ám	10 Áin	Solder	Green	22	Gold	3.96 mm	0.156 in	11	2	2	3.96 mm	0.156 "	Card Extender

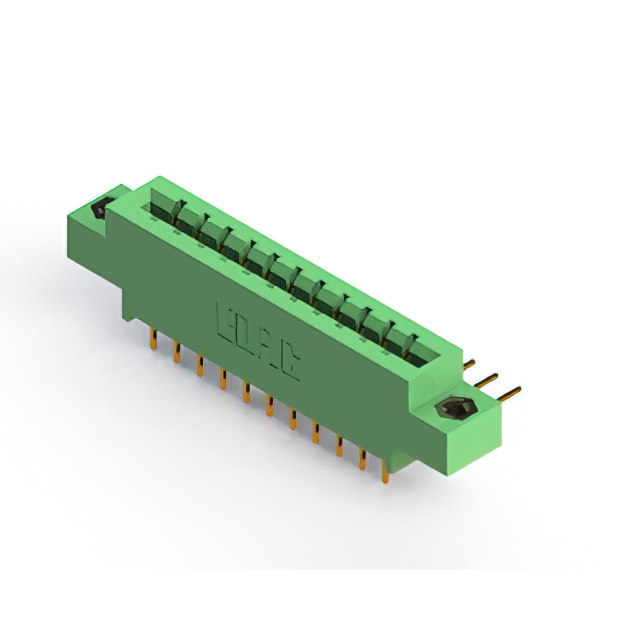

EDAC Inc. 833-022-559-808	Diallyl Phthalate (DAP)		125 °C	-40 C	Cantilever		Right Angle Through Hole	4-40 Threaded Insert Top Mount Opening	Copper Alloy	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Dual	0.25 Ám	10 Áin	Solder	Green	22	Gold	3.96 mm	0.156 in	11	2	2

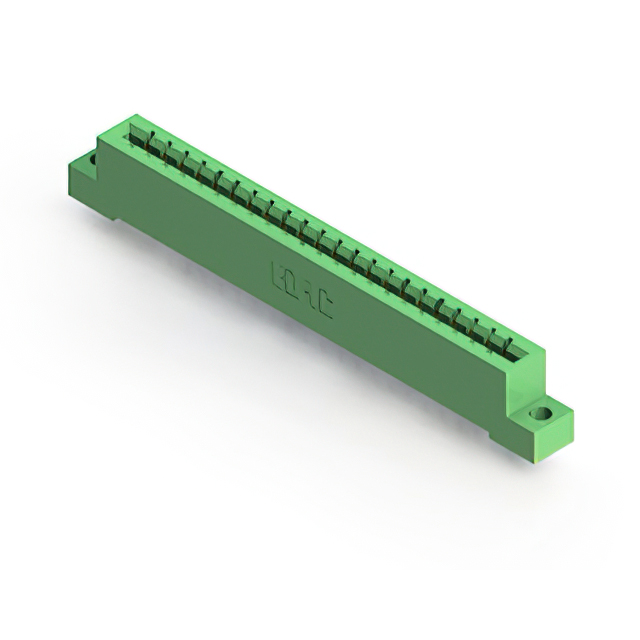

EDAC Inc. 833-022-542-104	Diallyl Phthalate (DAP)	1	125 °C	-40 C	Cantilever	1	Through Hole	Flush Mount Top Opening Unthreaded	Copper Alloy	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Single	0.25 Ám	10 Áin	Wire Wrap	Green	22	Gold	3.96 mm	0.156 in	22			3.96 mm	0.156 "
