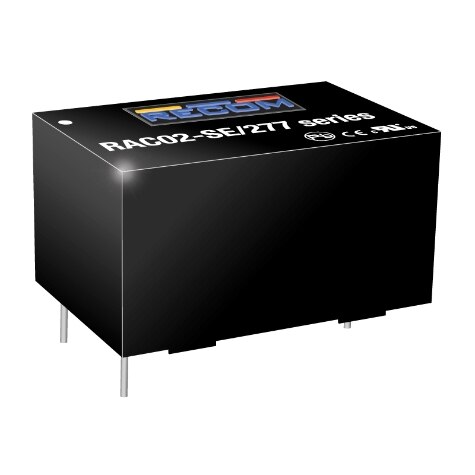

RAC02-SE/277 Series

Catalog

AC/DC PCB MOUNT POWER SUPPLY (PSU), ITE & HOUSEHOLD, 1 OUTPUT, 2 W, 3.3 V, 600 MA

Part	Efficiency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Power (Watts)	Voltage - Input [Max]	Voltage - Input [Min]	Mounting Type	Features	Voltage - Output 1	Package / Case	Number of Outputs	Standard Number	Current - Output (Max) [Max]	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Type	Line Regulation	Weight	Weight	Load Regulation
Recom Power RAC02-3.3SE/277	67 %	0.7 in	33.7 mm	1.33 in	0.96 in	24.4 mm	17.8 mm	2 W	305 VAC	85 VAC	Through Hole	Universal Input	3.3 V	4-DIP Module	1	60335-1 60950-1	600 mA	CE cURus	-40 °C	85 °C	Household Appliances ITE (Commercial)	Enclosed
Recom Power RAC02-05SE/277	70 %	0.7 in	33.7 mm	1.33 in	0.96 in	24.4 mm	17.8 mm	2 W	305 VAC	85 VAC	Through Hole	Universal Input	5 V	4-DIP Module	1	60335-1 60950-1	400 mA	CE cURus	-40 °C	85 °C	Household Appliances ITE (Commercial)	Enclosed	1.5 %	0.054 lb	24.49 g	6 %
Recom Power RAC02-12SE/277	73 %	0.7 in	33.7 mm	1.33 in	0.96 in	24.4 mm	17.8 mm	2 W	305 VAC	85 VAC	Through Hole	Universal Input	12 V	4-DIP Module	1	60335-1 60950-1	167 mA	CE cURus	-40 °C	85 °C	Household Appliances ITE (Commercial)	Enclosed
Recom Power RAC02-24SE/277	76 %	0.7 in	33.7 mm	1.33 in	0.96 in	24.4 mm	17.8 mm	2 W	305 VAC	85 VAC	Through Hole	Universal Input	24 V	4-DIP Module	1	60335-1 60950-1	83 mA	CE cURus	-40 °C	85 °C	Household Appliances ITE (Commercial)	Enclosed	1.5 %	0.054 lb	24.49 g	6 %
