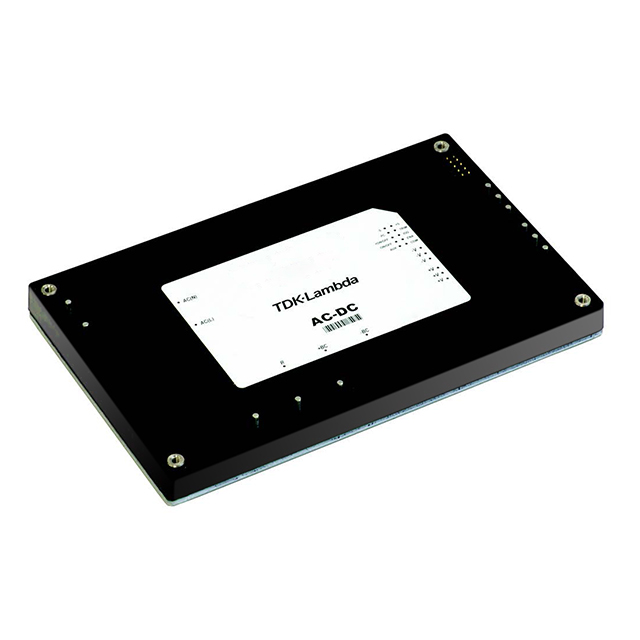

PFE1000 Series
Manufacturer: TDK Corporation
Beta
⌘K
AC/DC PCB MOUNT POWER SUPPLY (PSU), ITE, 1 OUTPUT, 1.008 KW, 48 VDC, 21 A
| Part | Weight [custom] | Weight [custom] | Line Regulation | Load Regulation | Package / Case | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Outputs | Voltage - Input [Max] | Voltage - Input [Min] | Standard Number | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Efficiency | Power (Watts) | Type | Current - Output (Max) [Max] | Voltage - Output 1 | Applications | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | 420.03 g | 0.926 lb | 96 mV | 96 mV | 21-DIP Module | Through Hole | -40 °C | 100 °C | 1 | 265 VAC | 85 VAC | 60950-1 62368-1 | 100 mm | 0.53 " | 13.4 mm | 6.3 " | 3.94 in | 160 mm | 90 % | 1.008 kW | Enclosed | 21 A | 48 V | ITE (Commercial) | CE cURus TUV |
 TDK Corporation | 420.03 g | 0.926 lb | 56 mV | 56 mV | 21-DIP Module | Through Hole | -40 °C | 100 °C | 1 | 265 VAC | 85 VAC | 60950-1 62368-1 | 100 mm | 0.53 " | 13.4 mm | 6.3 " | 3.94 in | 160 mm | 89 % | 1.008 kW | Enclosed | 36 A | 28 V | ITE (Commercial) | CE cURus TUV |
TDK Corporation | 420.03 g | 0.926 lb | 48 mV | 48 mV | 21-DIP Module | Through Hole | -40 °C | 100 °C | 1 | 265 VAC | 85 VAC | 60950-1 62368-1 | 100 mm | 0.53 " | 13.4 mm | 6.3 " | 3.94 in | 160 mm | 86 % | 720 W | Enclosed | 60 A | 12 V | ITE (Commercial) | CE cURus TUV |
