MEAS SK Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

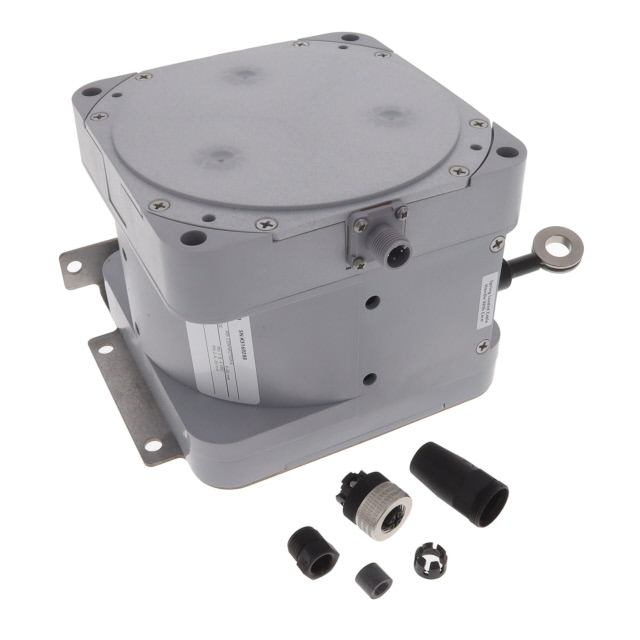

INDUSTRIAL MOTION & POSITION SENSORS 250 IN CANJ1939 IP67 STRING POT
| Part | Output | Linear Range [Max] | Linear Range [Min] | Linear Range [Min] | Linear Range [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Mounting Type | Technology | Voltage - Supply [Max] | Voltage - Supply [Min] | Package / Case | Termination Style | For Measuring | Voltage - Supply | Resistance Tolerance | Output [Max] | Output [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Analog Voltage | 6350 mm | 0 " | 0 mm | 250 in | 85 °C | -40 C | String Potentiometer | Chassis Mount | Resistive | 36 V | 10 VDC | Module | Connector | Linear Position | ||||
 TE Connectivity AMP Connectors | Analog Voltage | 10160 mm | 0 " | 0 mm | 400 in | 85 °C | -40 C | Slotted Shaft | Chassis Mount | Resistive | Module | Wire Leads | Linear Position | ||||||
 TE Connectivity AMP Connectors | Analog Voltage | 6350 mm | 0 " | 0 mm | 250 in | 85 °C | -40 C | String Potentiometer | Chassis Mount | Resistive | Module | Connector | Linear Position | 30 VDC | 10% | ||||
 TE Connectivity AMP Connectors | Analog Voltage | 10160 mm | 0 " | 0 mm | 400 in | 85 °C | -40 C | Slotted Shaft | Chassis Mount | Resistive | Module | Wire Leads | Linear Position | ||||||
TE Connectivity AMP Connectors | Analog Voltage | 10160 mm | 0 " | 0 mm | 400 in | 85 °C | -40 C | String Potentiometer | Chassis Mount | Resistive | 36 V | 10 VDC | Module | Connector | Linear Position | ||||
 TE Connectivity AMP Connectors | Analog Voltage | 10160 mm | 0 " | 0 mm | 400 in | 85 °C | -40 C | String Potentiometer | Chassis Mount | Resistive | Module | Connector | Linear Position | 30 VDC | 10% | ||||
 TE Connectivity AMP Connectors | 6350 mm | 0 " | 0 mm | 250 in | 85 °C | -40 C | String Potentiometer | Chassis Mount | Resistive | 32 VDC 40 VDC | 8 V 12 VDC | Module | Connector | Linear Position | 20 mA | 4 mA | |||
TE Connectivity AMP Connectors | 10160 mm | 0 " | 0 mm | 400 in | 85 °C | -40 C | String Potentiometer | Chassis Mount | Resistive | 36 V | 10 VDC | Module | Connector | Linear Position | 20 mA | 4 mA | |||
 TE Connectivity AMP Connectors | 10160 mm | 0 " | 0 mm | 400 in | 85 °C | -40 C | String Potentiometer | Chassis Mount | Resistive | 32 VDC 40 VDC | 8 V 12 VDC | Module | Connector | Linear Position | 20 mA | 4 mA | |||
 TE Connectivity AMP Connectors | 6350 mm | 0 " | 0 mm | 250 in | 85 °C | -40 C | String Potentiometer | Chassis Mount | Resistive | 36 V | 10 VDC | Module | Connector | Linear Position | 20 mA | 4 mA |
