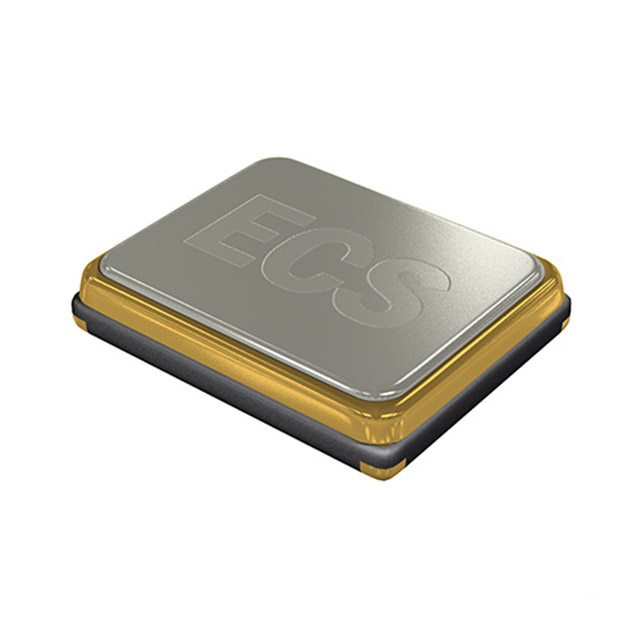

ECX-1247Q Series

Manufacturer: ECS Inc.

Catalog

CRYSTALS 32MHZ 6PF 20PPM -40C +85C

Part	Height - Seated (Max) [Max]	Height - Seated (Max)	Frequency Stability	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Ratings	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package	ESR (Equivalent Series Resistance)	Operating Mode	Frequency Tolerance	Mounting Type	Load Capacitance	Type	Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case
ECS Inc. ECS-320-6-47Q-CTN-TR	0.016 in	0.4 mm	20 ppm	1.6 mm	1.2 mm	0.047 in	0.063 "	AEC-Q200	85 °C	-40 C	1.2	1.6	4-SMD	150 Ohms	Fundamental	10 ppm	Surface Mount	6 pF	MHz Crystal	32 MHz	0.35 mm	0.014 "	4-SMD No Lead
