Q5X Series
Manufacturer: BANNER ENGINEERING
Beta
⌘K

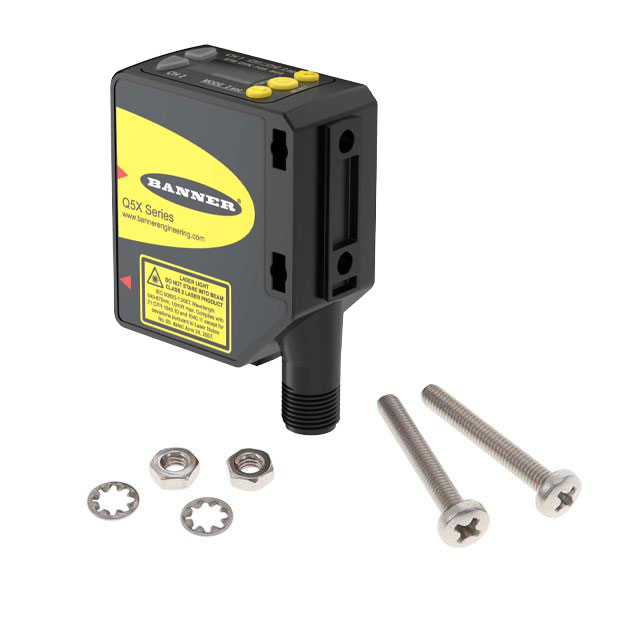

PHOTOELECTRIC SENSORS Q5X SERIES: LASER ADJUSTABLE FIELD; RANGE: 95-2000 MM; INPUT: 10-30 V DC; OUTPUT: 1 PNP/NPN WITH IO-LINK; 1 PNP/NPN MULTI-FUNCTION I/O; 4-PIN M12 ROTATABLE QD; DEFAULT PFM OUTPUT ON CHANNEL 2
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Output Configuration | Light Source | Sensing Method | Connection Method | Ingress Protection | Sensing Distance [Max] | Sensing Distance [Min] | Sensing Distance [Min] | Sensing Distance [Max] | Adjustment Type | Response Time | Voltage - Supply [Min] | Voltage - Supply [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BANNER ENGINEERING | 50 °C | -10 °C | NPN PNP | Red Laser Diode (650nm) | Background Suppression | Connector M12 | IP67 | 78.74 in | 9.5 cm | 3.74 in | 2000 mm | Teaching Method | 3 ms | 10 VDC | 30 VDC |
