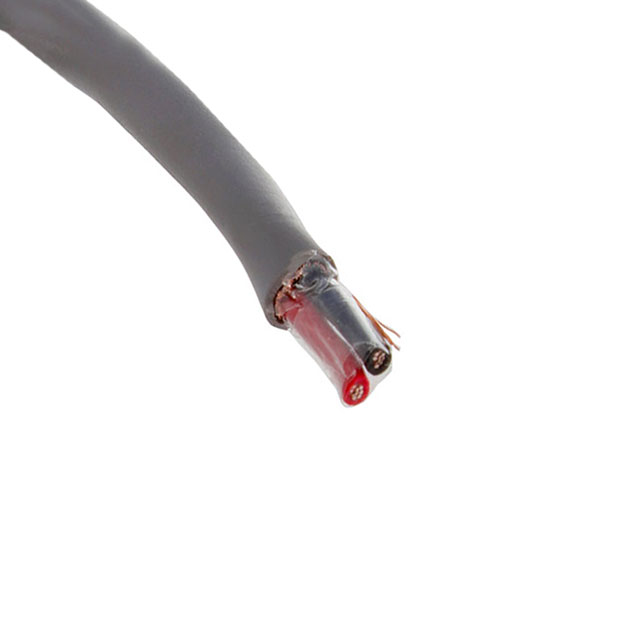

2256 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CABLE 2COND 20AWG SHLD 1000'
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Material | Shield Type | Wire Gauge | Voltage | Jacket Color | Operating Temperature [Max] | Operating Temperature [Min] | Cable Type | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Usage | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 95 % | Copper Bare | Poly-Vinyl Chloride (PVC) | Spiral | 20 AWG | 300 VDC | Slate | 80 °C | -20 ░C | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 0.02 " | 0.508 mm | 4.85 mm | 0.191 " | 2 | Communication Control | 304.8 m | 1000 ft | 10 | 30 AWG | Copper Tinned |
