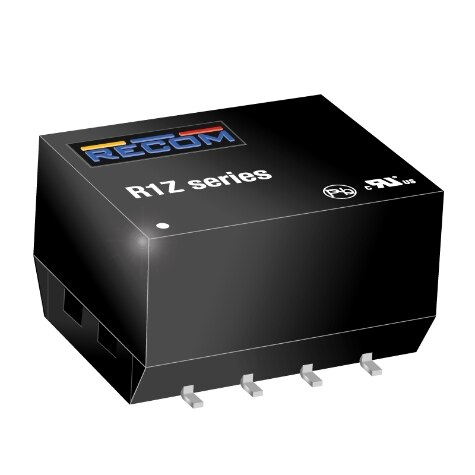

R1Z Series
Manufacturer: Recom Power
Beta
⌘K
ISOLATED DC/DC CONVERTERS - SMD 1W 15VIN 3.3VOUT 303MA SMD 6 PIN
| Part | Voltage - Input (Min) [Min] | Voltage - Isolation | Current - Output (Max) [Max] | Voltage - Output 1 | Mounting Type | Package / Case | Applications | Voltage - Input (Max) [Max] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Efficiency | Type | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 14.25 V | 2000 V | 303 mA | 3.3 V | Surface Mount | 10-SMD Module 6 Leads | ITE (Commercial) Medical | 15.75 V | 15.2 mm | 0.35 in | 10.7 mm | 0.6 " | 0.42 " | 9 mm | 60 % | Isolated Module | 1 | 70 °C | -40 C | |
 Recom Power | 11.4 V | 1000 V | 111 mA | 9 V | Surface Mount | 10-SMD Module 6 Leads | ITE (Commercial) Medical | 12.6 V | 15.2 mm | 0.35 in | 10.7 mm | 0.6 " | 0.42 " | 9 mm | 60 % | Isolated Module | 1 | 70 °C | -40 C | SCP |
 Recom Power | 14.25 V | 1000 V | 111 mA | 9 V | Surface Mount | 10-SMD Module 6 Leads | ITE (Commercial) Medical | 15.75 V | 15.2 mm | 0.35 in | 10.7 mm | 0.6 " | 0.42 " | 9 mm | 60 % | Isolated Module | 1 | 70 °C | -40 C | SCP |
Recom Power | 14.25 V | 2000 V | 200 mA | 5 V | Surface Mount | 10-SMD Module 6 Leads | ITE (Commercial) Medical | 15.75 V | 15.2 mm | 0.35 in | 10.7 mm | 0.6 " | 0.42 " | 9 mm | 60 % | Isolated Module | 1 | 70 °C | -40 C | |
Recom Power | 11.4 V | 1000 V | 111 mA | 9 V | Surface Mount | 10-SMD Module 6 Leads | ITE (Commercial) Medical | 12.6 V | 15.2 mm | 0.35 in | 10.7 mm | 0.6 " | 0.42 " | 9 mm | 60 % | Isolated Module | 1 | 70 °C | -40 C | |
Recom Power | 11.4 V | 1000 V | 42 mA | 12 V | Surface Mount | 10-SMD Module 6 Leads | ITE (Commercial) Medical | 12.6 V | 15.2 mm | 0.35 in | 10.7 mm | 0.6 " | 0.42 " | 9 mm | 60 % | Isolated Module | 1 | 70 °C | -40 C | |
Recom Power | 11.4 V | 1000 V | 66 mA | 15 V | Surface Mount | 10-SMD Module 6 Leads | ITE (Commercial) Medical | 12.6 V | 15.2 mm | 0.35 in | 10.7 mm | 0.6 " | 0.42 " | 9 mm | 60 % | Isolated Module | 1 | 70 °C | -40 C | SCP |
Recom Power | 11.4 V | 1000 V | 200 mA | 5 V | Surface Mount | 10-SMD Module 6 Leads | ITE (Commercial) Medical | 12.6 V | 15.2 mm | 0.35 in | 10.7 mm | 0.6 " | 0.42 " | 9 mm | 60 % | Isolated Module | 1 | 70 °C | -40 C | |
Recom Power | 11.4 V | 2000 V | 84 mA | 12 V | Surface Mount | 10-SMD Module 6 Leads | ITE (Commercial) Medical | 12.6 V | 15.2 mm | 0.35 in | 10.7 mm | 0.6 " | 0.42 " | 9 mm | 60 % | Isolated Module | 1 | 70 °C | -40 C | SCP |
Recom Power | 3.1 V | 2000 V | 111 mA | 9 V | Surface Mount | 10-SMD Module 6 Leads | ITE (Commercial) Medical | 3.5 V | 15.2 mm | 0.35 in | 10.7 mm | 0.6 " | 0.42 " | 9 mm | 60 % | Isolated Module | 1 | 70 °C | -40 C | SCP |
