Sds0 Series Series

Side Actuated Detect Switch Detector Switches BLACK SIDE ACTUATED DETECT SWITCH

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Side Actuated Detect Switch Detector Switches BLACK SIDE ACTUATED DETECT SWITCH

Part	Voltage Rating - DC	Circuit	Actuator Type	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Mounting Type	Electrical Life	Overtravel	Overtravel	Termination Style	Operating Force	Release Force	Pretravel	Pretravel	Operating Position [custom]	Operating Position [custom]
Littelfuse/Commercial Vehicle Products SDS005R	12 V	SPST-NC	Overtravel Plunger	100 mA	85 °C	-40 °C	On-Mom	Surface Mount Right Angle	50000 Cycles	2 mm	0.079 in	SMD (SMT) Tab	75 gf
Littelfuse/Commercial Vehicle Products SDS005RULC	12 V	SPST-NC	Overtravel Plunger	100 mA	85 °C	-40 °C	On-Mom	Surface Mount Right Angle	50000 Cycles	1.5 mm	0.06 "	SMD (SMT) Tab	75 gf	50 gf	0.02 in	0.5 mm	6.7 mm	0.264 "
Littelfuse/Commercial Vehicle Products SDS002RULC	12 V	SPST-NO	Overtravel Plunger	100 mA	85 °C	-40 °C	Off-Mom	Surface Mount Right Angle	50000 Cycles	1.5 mm	0.06 "	SMD (SMT) Tab	75 gf	50 gf	0.02 in	0.5 mm	6.7 mm	0.264 "
Littelfuse/Commercial Vehicle Products SDS005	12 V	SPST-NC	Overtravel Plunger	100 mA	85 °C	-40 °C	On-Mom	Surface Mount Right Angle	50000 Cycles	2 mm	0.079 in	SMD (SMT) Tab	75 gf
Littelfuse/Commercial Vehicle Products SDS004RULC	12 V	SPST-NO	Overtravel Plunger	100 mA	85 °C	-40 °C	Off-Mom	Surface Mount Right Angle	50000 Cycles	1.5 mm	0.06 "	SMD (SMT) Tab	75 gf	50 gf	0.02 in	0.5 mm	6.7 mm	0.264 "

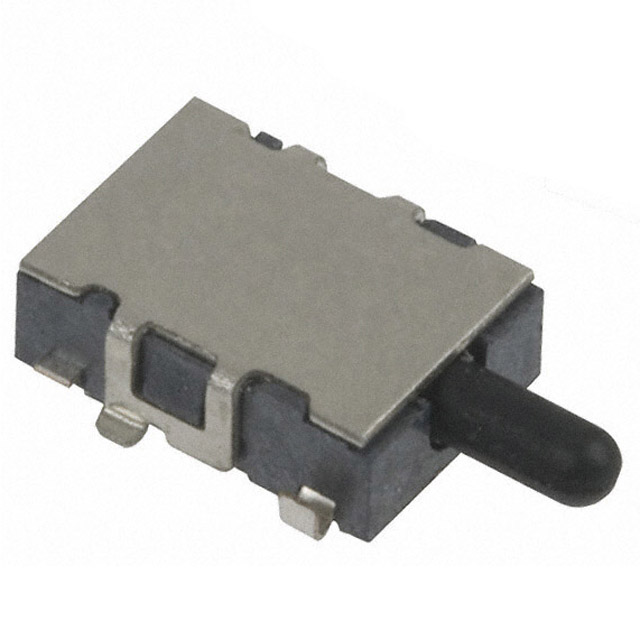

Littelfuse/Commercial Vehicle Products SDS001	12 V	SPST-NO	Overtravel Plunger	100 mA	85 °C	-40 °C	Off-Mom	Surface Mount Right Angle	50000 Cycles	2 mm	0.079 in	SMD (SMT) Tab	75 gf

Catalog

Side Actuated Detect Switch Detector Switches BLACK SIDE ACTUATED DETECT SWITCH

Key Features

• Low profile package sits just 2mm off PCB

• 2mm overtravel ideal for detector applications

• Low actuation force (75 grams max.)

• Ultra low current capabilities

Description

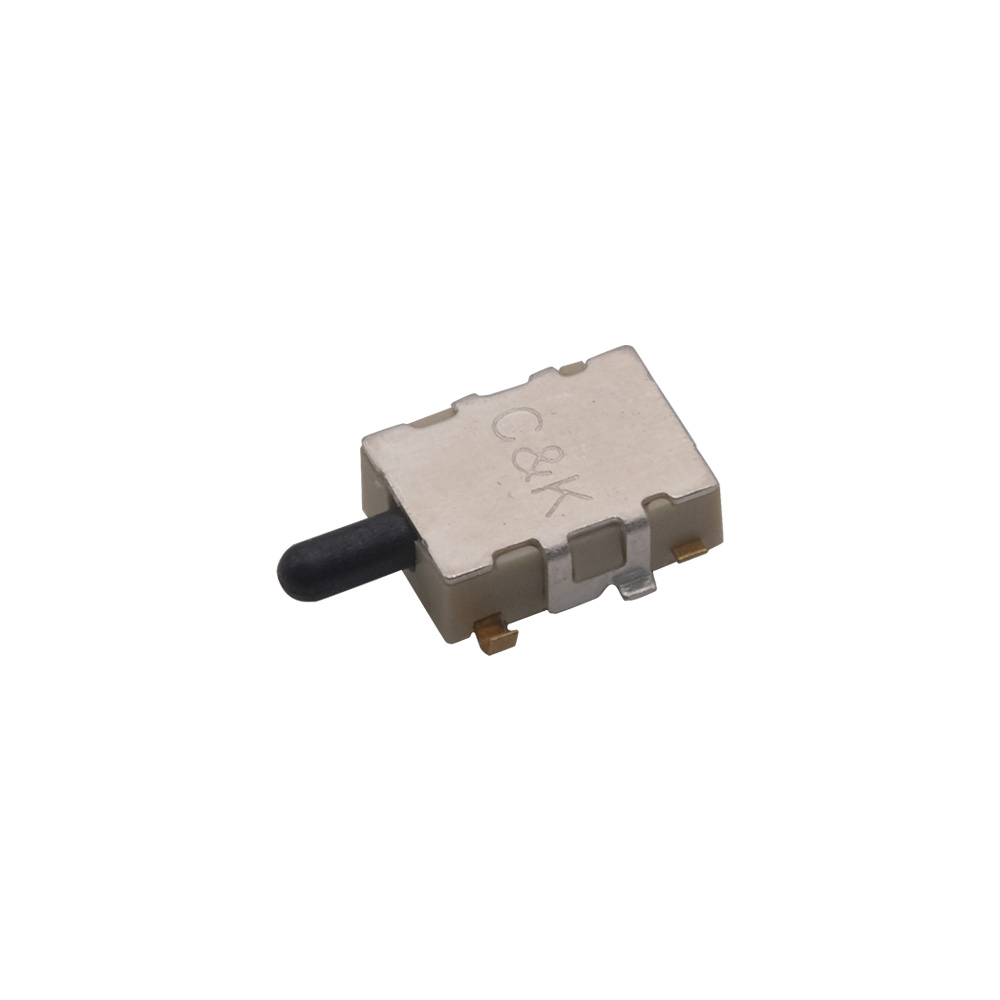

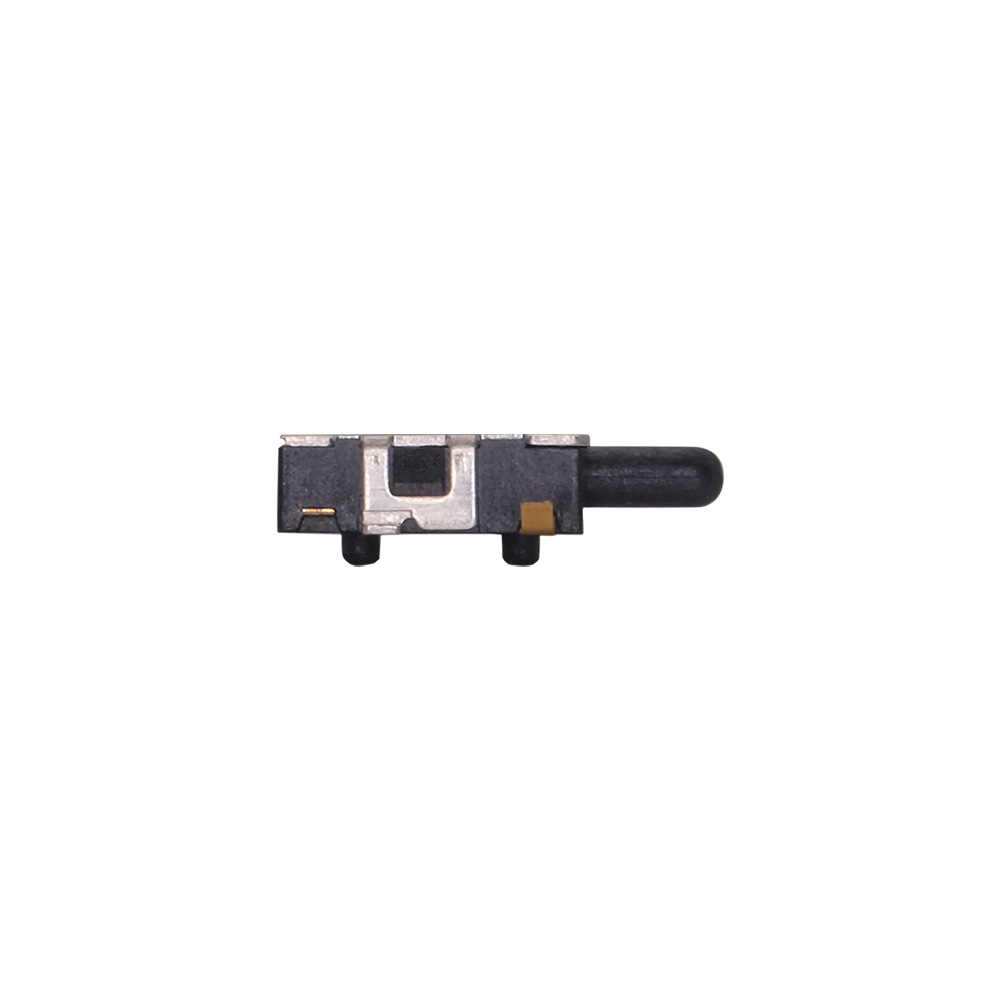

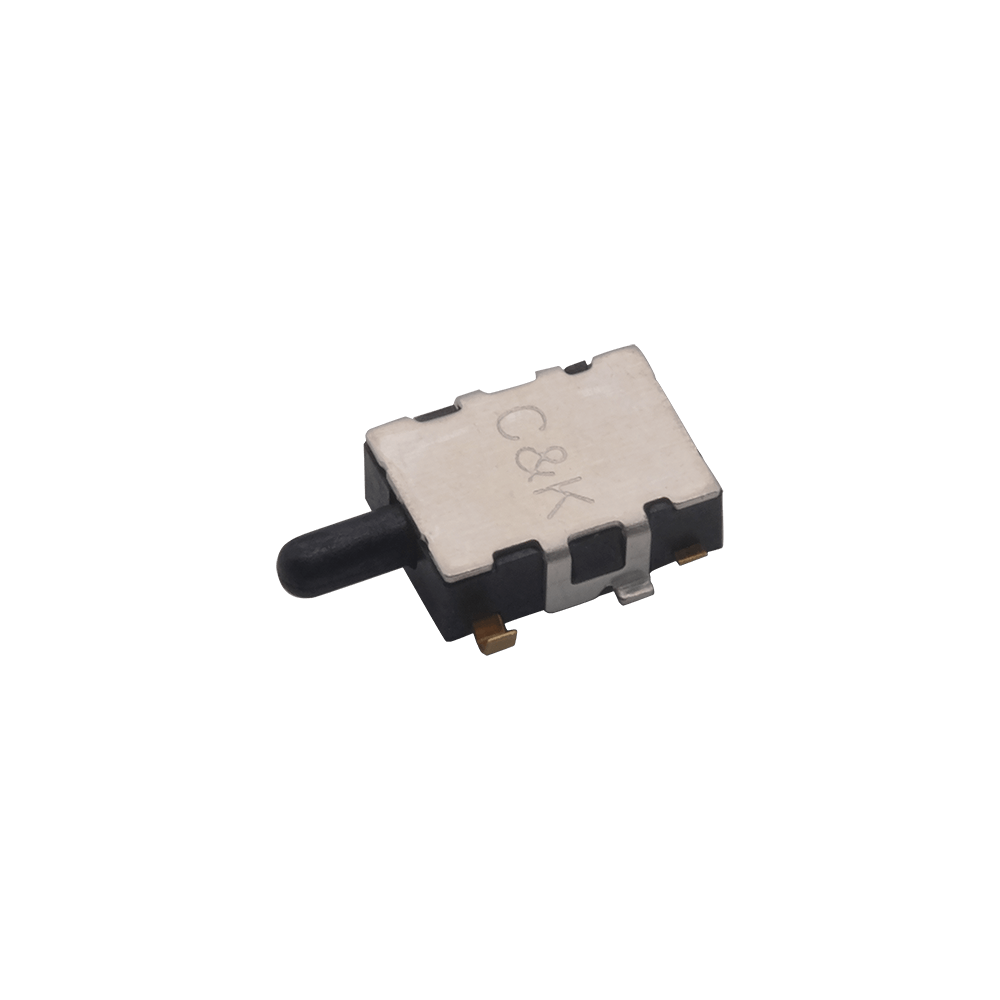

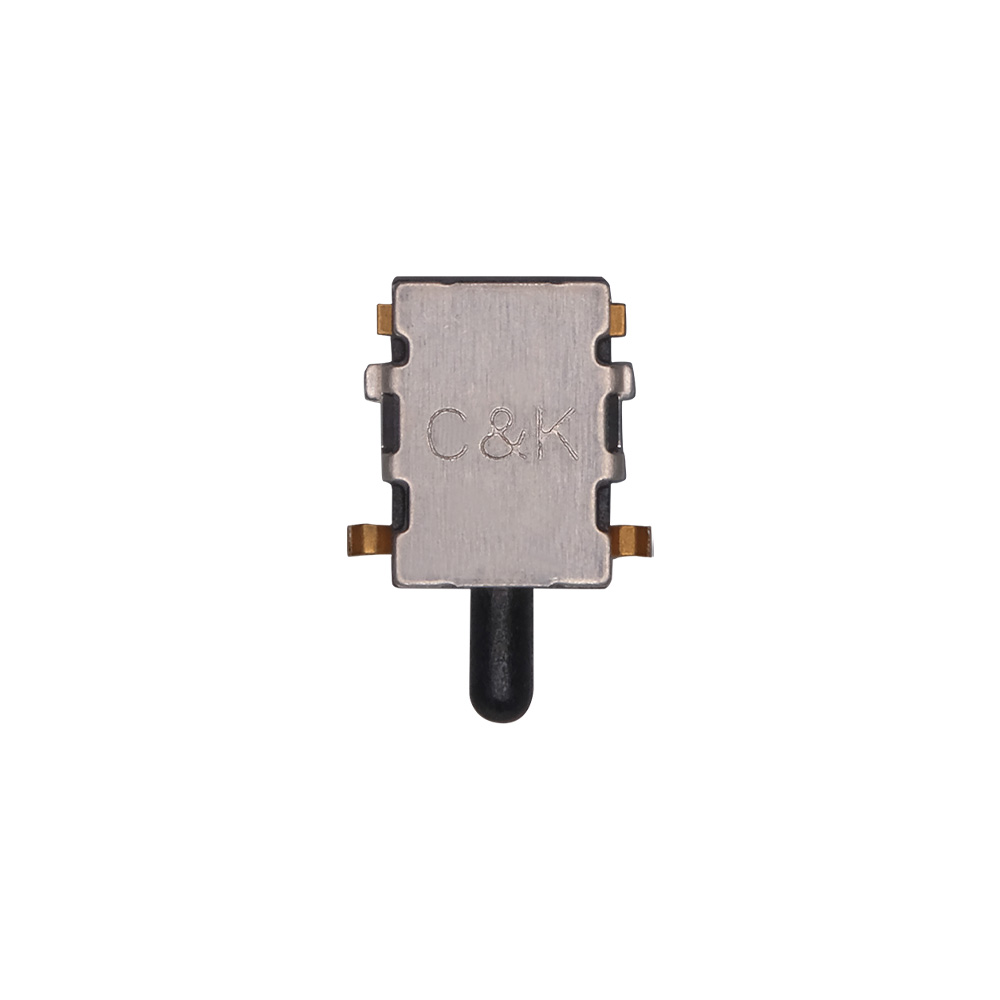

C&K’s SDS series are side actuated detect switches, manufactured to have a low actuation force (75g maximum) and a low-profile package that sits just 2mm from the PCB. Perfect for consumer electronics, medical devices and ATCA or MicroTCA devices, the long-lasting SDS series also have a 2mm overtravel, making them ideal for detector applications.
