0ADB Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K
CARTRIDGE FUSES FUSE, CERAMIC TUBE 315MA, 1000VAC/VDC
| Part | Response Time | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case [y] | Package / Case [x] | Package / Case | Melting I²t | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [diameter] | Voltage Rating - DC | Current Rating (Amps) | Fuse Type | Voltage Rating - AC | DC Cold Resistance | Size / Dimension [diameter] | Size / Dimension [z] | Size / Dimension [z] | Melting I˛t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

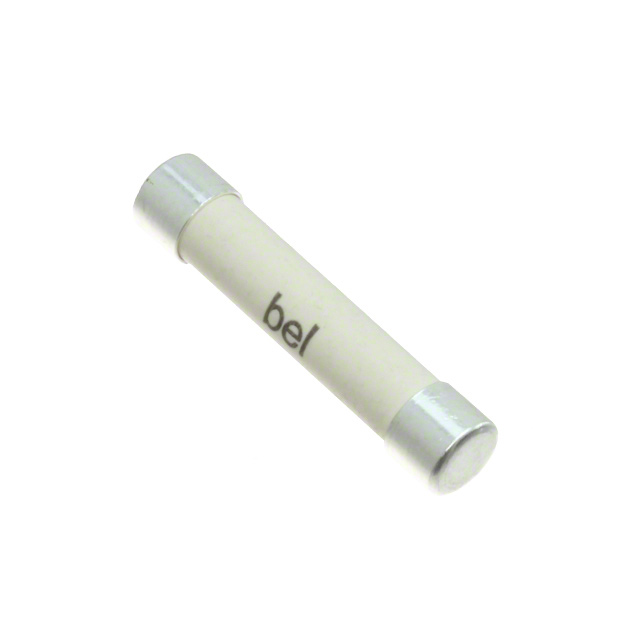

 Bel Fuse Inc. | Fast Blow | Requires Holder | -55 C | 125 °C | 0.25 in | 3AB 3AG | 0.05 | 31.8 mm | 1.252 " | 6.35 mm | 0.25 " | 1 kVDC | 0.315 A | Cartridge Ceramic | 1 kV | ||||||

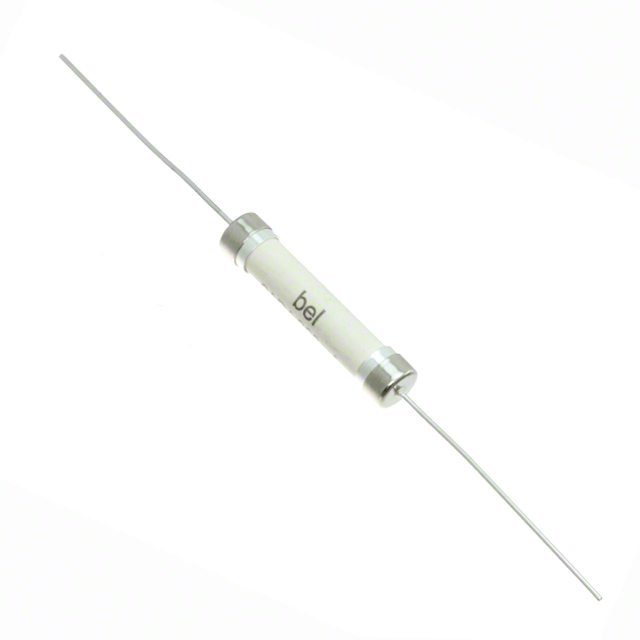

 Bel Fuse Inc. | Fast Blow | Through Hole | -55 C | 125 °C | 0.25 " | 3AB 3AG | 4.5 | 6.76 mm | 1 kVDC | 2.5 A | Cartridge Ceramic | 1 kV | 0.088 Ohms | 0.266 in | 1.292 in | 32.82 mm | |||||
Bel Fuse Inc. | Fast Blow | Through Hole | -55 C | 125 °C | 0.25 " | 3AB 3AG | 0.21 | 6.76 mm | 1 kVDC | 1 A | Cartridge Ceramic | 1 kV | 0.45 Ohms | 0.266 in | 1.292 in | 32.82 mm | |||||
 Bel Fuse Inc. | Fast Blow | Requires Holder | -55 C | 125 °C | 0.25 in | 3AB 3AG | 1.5 I²t | 31.8 mm | 1.252 " | 6.35 mm | 0.25 " | 1 kVDC | 2 A | Cartridge Ceramic | 1 kV | 150 mOhms | 1.5 I˛t |
