CXS70 Series
Manufacturer: Panduit Corp
Beta
⌘K

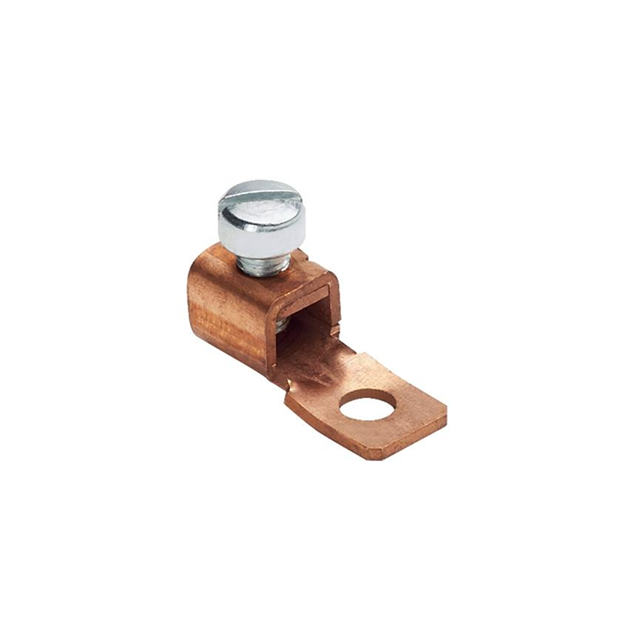

COPPER MECHANICAL LUG, 1 HOLE, 1 BARREL,
| Part | Contact Finish | Diameter - Ring ID | Diameter - Ring ID | Contact Material | Stud/Tab Size | Tab Thickness [custom] | Tab Thickness [custom] | Length - Overall [x] | Length - Overall [x] | Termination | Terminal Style | Width - Outer Edges [x] | Width - Outer Edges [x] | Terminal Type | Features | Wire Gauge [Max] | Wire Gauge [Min] | Mounting Type | Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | Tin | 0.27 in | 6.86 mm | Copper Alloy | 0.25 Stud | 0.06 in | 1.52 mm | 11.94 mm | 0.47 in | Screw | Single Stud Hole | 12.7 mm | 0.5 in | Lug Grounding | With Screw | 14 AWG | 4 AWG | Free Hanging (In-Line) | Non-Insulated |
