MGN2C Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K

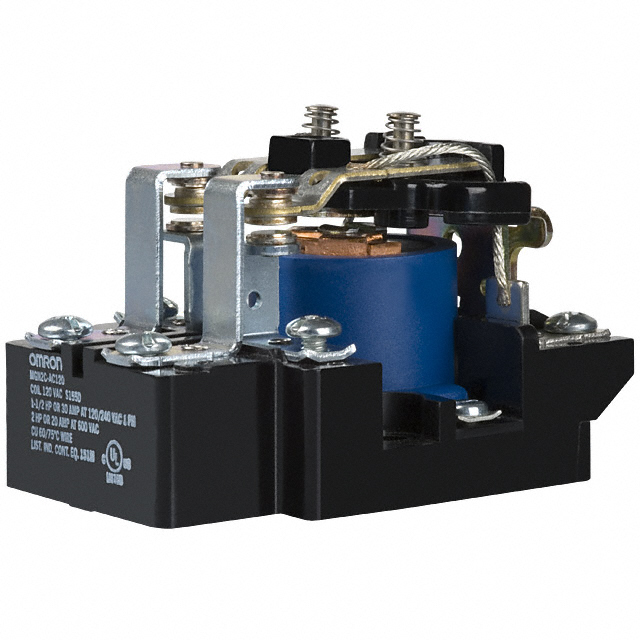

RELAY GEN PURPOSE DPDT 30A 240V
| Part | Must Operate Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Contact Rating (Current) | Coil Resistance | Termination Style | Release Time | Coil Current | Mounting Type | Operate Time | Contact Form | Coil Insulation | Coil Voltage | Switching Voltage | Relay Type | Coil Type | Load - Max Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 204 VAC | -45 °C | 80 C | 30 A | 1.17 kOhms | Screw Terminal | 30 ms | 40 mA | Chassis Mount | 30 ms | DPDT (2 Form C) | Class F | 240 VAC | 28 VDC 600 VAC | General Purpose | Non Latching | 840 W 18000 VA |
Omron Electronics Inc-EMC Div | 204 VAC | -45 °C | 80 C | 30 A | 1.17 kOhms | Screw Terminal | 30 ms | 40 mA | Chassis Mount | 30 ms | DPDT (2 Form C) | Class F | 240 VAC | 28 VDC 600 VAC | General Purpose | Non Latching | 840 W 18000 VA |
Omron Electronics Inc-EMC Div | 82.5 VDC | -40 °C | 115 °C | 30 A | 6.05 kOhms | Screw Terminal | 30 ms | 18.2 mA | Chassis Mount | 30 ms | DPDT (2 Form C) | Class F | 110 VDC | 28 VDC 600 VAC | General Purpose | Non Latching | 840 W 18000 VA |
Omron Electronics Inc-EMC Div | 102 VAC | -45 °C | 80 C | 30 A | 295 Ohms | Screw Terminal | 30 ms | Chassis Mount | 30 ms | DPDT (2 Form C) | Class F | 120 VAC | 28 VDC 600 VAC | General Purpose | Non Latching | 840 W 18000 VA | |
Omron Electronics Inc-EMC Div | 204 VAC | -45 °C | 80 C | 30 A | Screw Terminal | 30 ms | Chassis Mount | 30 ms | DPDT (2 Form C) | 240 VAC | 28 VDC 600 VAC | General Purpose | Non Latching | 840 W 18000 VA | |||
Omron Electronics Inc-EMC Div | 82.5 VDC | -40 °C | 115 °C | 30 A | 6.05 kOhms | Screw Terminal | 30 ms | 18.2 mA | Chassis Mount | 30 ms | DPDT (2 Form C) | Class F | 110 VDC | 28 VDC 600 VAC | General Purpose | Non Latching | 840 W 18000 VA |
Omron Electronics Inc-EMC Div | -45 °C | 80 C | 30 A | 11.5 Ohms | Screw Terminal | 30 ms | 396 mA | Chassis Mount | 30 ms | DPDT (2 Form C) | Class F | 24 VAC | 28 VDC 600 VAC | General Purpose | Non Latching | 840 W 18000 VA | |
Omron Electronics Inc-EMC Div | 36 VDC | -40 °C | 115 °C | 30 A | 1.15 kOhms | Screw Terminal | 30 ms | 41.6 mA | Chassis Mount | 30 ms | DPDT (2 Form C) | Class F | 48 VDC | 28 VDC 600 VAC | General Purpose | Non Latching | 840 W 18000 VA |
Omron Electronics Inc-EMC Div | 9 VDC | -40 °C | 115 °C | 30 A | 72 Ohms | Screw Terminal | 30 ms | 167 mA | Chassis Mount | 30 ms | DPDT (2 Form C) | Class F | 12 VDC | 28 VDC 600 VAC | General Purpose | Non Latching | 840 W 18000 VA |
