550S Series

Catalog

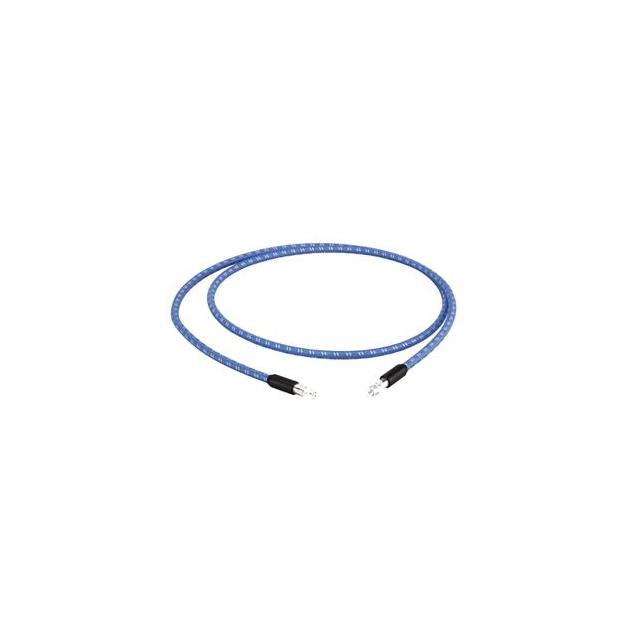

RF CABLE, 2.92MM PLUG-2.92MM JACK, 36" ROHS COMPLIANT: YES

Part	Operating Temperature [Min]	Operating Temperature [Max]	2nd Connector Mounting Type	Frequency - Max [Max]	Color	1st Connector	1st Connector Mounting Type	1st Contact Gender	Length	Length	Style [Max]	Style [Min]	2nd Connector	Overall Impedance	2nd Contact Gender	Length	1st Connector	Length [x]	Length [x]	Cable Impedance	Cable Type	Cable Type [diameter]
Huber+Suhner, Inc. SF550S/11SK/21SK/36IN	-55 C	125 °C	Free Hanging (In-Line)	40 GHz	Blue	2.92 mm	Free Hanging (In-Line)	Female	91.44 cm	36 in	2.92 mm	2.92 mm	2.92 mm	50 Ohms	Male
Huber+Suhner, Inc. SF550S/11PC24/21PC24/1500MM	-55 C	125 °C	Free Hanging (In-Line)	50 GHz	Blue		Free Hanging (In-Line)	Female	1.5 m	59.1 "	2.4 mm	2.4 mm	2.4 mm	50 Ohms	Male	4.9 '	2.4mm Jack
Huber+Suhner, Inc. SF550S/11PC24/11PC24/24IN	-55 C	125 °C	Free Hanging (In-Line)	50 GHz	Blue	2.4 mm	Free Hanging (In-Line)	Male			2.4 mm	2.4 mm	2.4 mm	50 Ohms	Male			609.6 mm	24 in	50 Ohms	Coaxial Cable	3.7 mm
