ISL78420 Series

Catalog

100V, 2A PEAK, HALF-BRIDGE DRIVER WITH TRI-LEVEL PWM INPUT AND ADJUSTABLE DEAD-TIME

Part	Driven Configuration	Grade	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Input Type	Package / Case	Gate Type	Channel Type	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Logic Voltage - VIL, VIH	High Side Voltage - Max (Bootstrap) [Max]	Qualification	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Supplier Device Package	Number of Drivers
Renesas Electronics Corporation ISL78420AVEZ-T7A	Half-Bridge	Automotive	Surface Mount	8 V	14 V	-40 °C	125 °C	Non-Inverting	14-TSSOP (0.173" 4.40mm Width) Exposed Pad	N-Channel MOSFET	Synchronous	10 ns	10 ns	1.8 V 4 V	114 V	AEC-Q100	2 A	2 A	14-HTSSOP	2

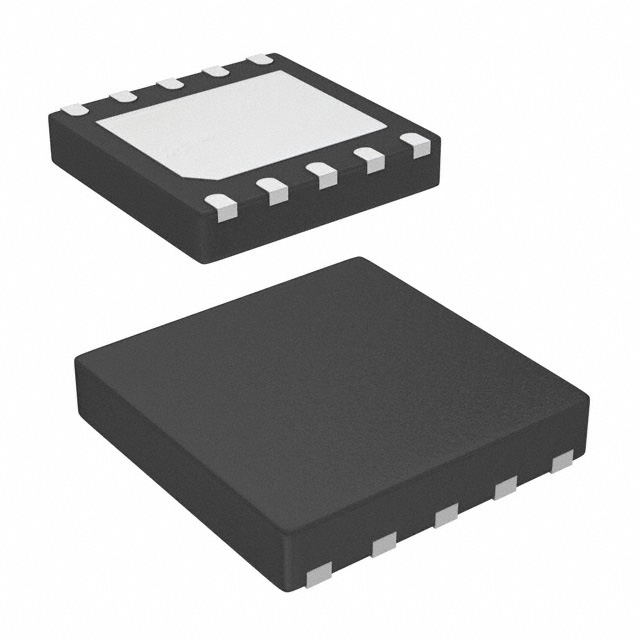

Renesas Electronics Corporation ISL78420ARTAZ	Half-Bridge	Automotive	Surface Mount	8 V	14 V	-40 °C	125 °C	Non-Inverting	10-WDFN Exposed Pad	N-Channel MOSFET	Synchronous	10 ns	10 ns	1.8 V 4 V	114 V	AEC-Q100	2 A	2 A	10-TDFN (4x4)	2
