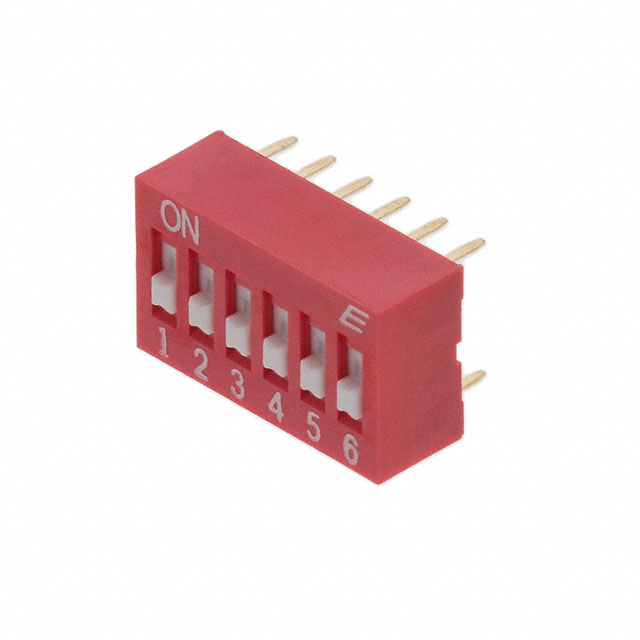

KAS1106 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH SLIDE DIP SPST 0.025A 24V
| Part | Body Material | Length | Length | Electrical Life | Mechanical Life | Circuit | Number of Positions | Features | Actuator Level | Washable | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Current Rating (Amps) | Pitch | Pitch | Actuator Type | Voltage Rating | Height Above Board [z] | Height Above Board [z] | Termination Style | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | Polybutylene Terephthalate (PBT) Glass Filled | 16.61 mm | 0.654 in | 2000 Steps | 2000 Cycles | SPST | 6 | Tape Seal | Flush Recessed | Phosphor Bronze | 85 °C | -40 C | Gold | 25 mA | 2.54 mm | 0.1 " | Slide (Standard) | 24 VDC | 0.236 in | 6 mm | PC Pin | Through Hole | |
 E-Switch | Polybutylene Terephthalate (PBT) Glass Filled | 16.61 mm | 0.654 in | 2000 Steps | 2000 Cycles | SPST | 6 | Raised | Phosphor Bronze | 85 °C | -40 C | Gold | 25 mA | 2.54 mm | 0.1 " | Slide (Standard) | 24 VDC | 0.275 in | 6.99 mm | PC Pin | Through Hole | ||
 E-Switch | Polybutylene Terephthalate (PBT) Glass Filled | 16.61 mm | 0.654 in | 2000 Steps | 2000 Cycles | SPST | 6 | Flush Recessed | Phosphor Bronze | 85 °C | -40 C | Gold | 25 mA | 2.54 mm | 0.1 " | Slide (Standard) | 24 VDC | 0.236 in | 6 mm | PC Pin | Through Hole |
