0365-0 Series

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter	Socket Depth	Socket Depth	Contact Finish	Tail Type	Flange Diameter [diameter]	Flange Diameter [diameter]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Accepts Pin Diameter [Min] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Min] [diameter]	Contact Material	Length - Overall [x]	Length - Overall [x]	Termination

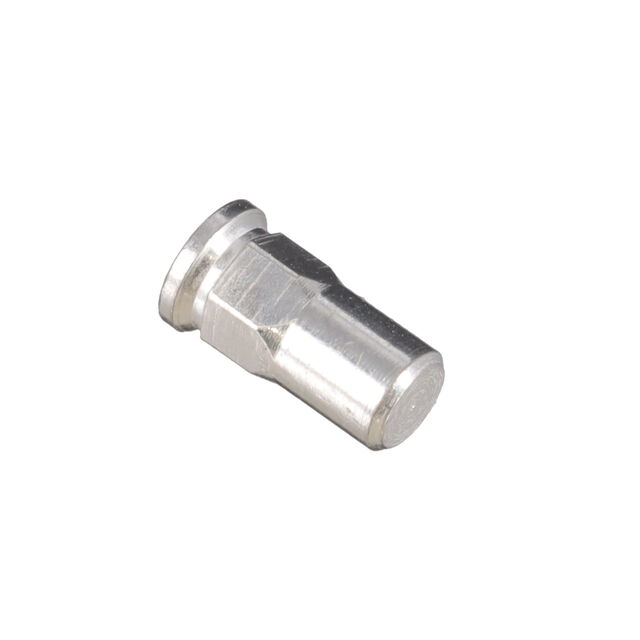

Mill-Max Manufacturing Corp. 0365-0-15-80-23-80-10-0	-55 C	125 °C	0.105 in	2.67 mm	0.19 in	4.83 mm	Tin	No Tail	0.12 in	3.05 mm	2.24 mm	0.088 "	200 Áin	5.08 Ám	0.045 "	1.65 mm	0.065 "	1.14 mm	Beryllium Copper	5.66 mm	0.223 in	Hex Press-Fit

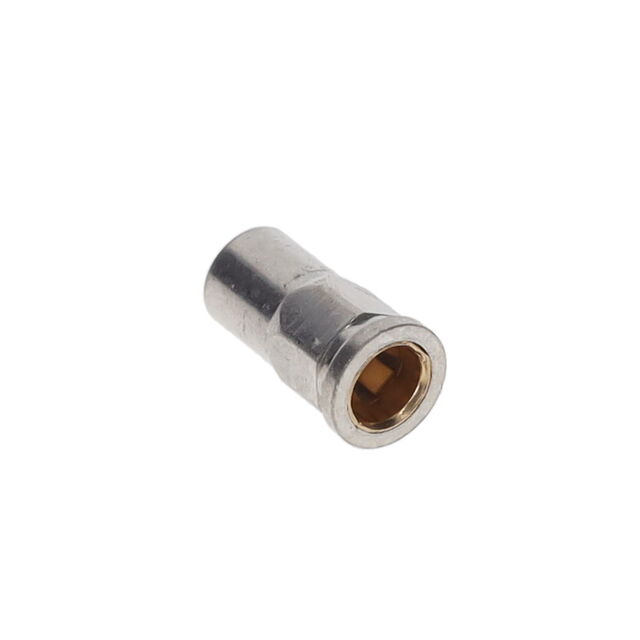

Mill-Max Manufacturing Corp. 0365-0-15-01-23-27-10-0	-55 C	125 °C	0.105 in	2.67 mm	0.19 in	4.83 mm	Gold	No Tail	0.12 in	3.05 mm	2.24 mm	0.088 "	30 Áin	0.76 Ám	0.045 "	1.65 mm	0.065 "	1.14 mm	Beryllium Copper	5.66 mm	0.223 in	Hex Press-Fit
Mill-Max Manufacturing Corp. 0365-0-15-80-23-14-10-0	-55 C	125 °C	0.105 in	2.67 mm	0.19 in	4.83 mm	Gold	No Tail	0.12 in	3.05 mm	2.24 mm	0.088 "	10 Áin	0.25 Ám	0.045 "	1.65 mm	0.065 "	1.14 mm	Beryllium Copper	5.66 mm	0.223 in	Hex Press-Fit

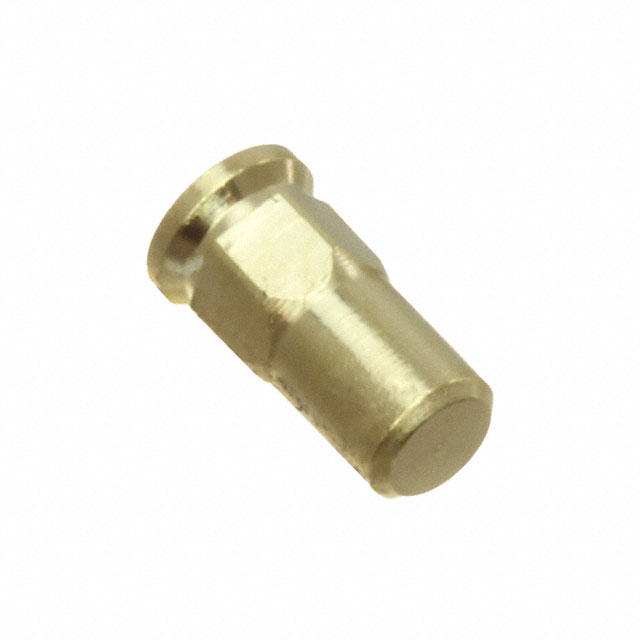

Mill-Max Manufacturing Corp. 0365-0-15-15-23-27-10-0	-55 C	125 °C	0.105 in	2.67 mm	0.19 in	4.83 mm	Gold	No Tail	0.12 in	3.05 mm	2.24 mm	0.088 "	30 Áin	0.76 Ám	0.045 "	1.65 mm	0.065 "	1.14 mm	Beryllium Copper	5.66 mm	0.223 in	Hex Press-Fit
