CPST Series

Catalog

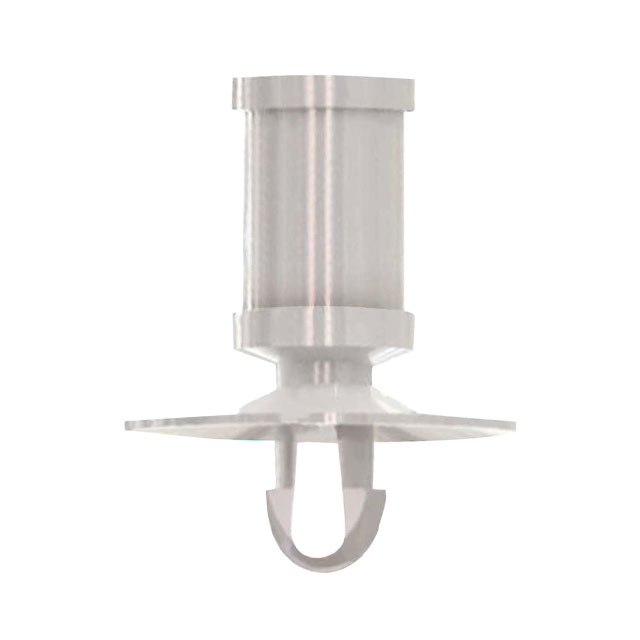

PUSH SPACER CUP-TEARDROP 7/16"

Part	Between Board Height	Between Board Height	Between Board Height	Holding Type	Mounting Type	Mounting Panel Thickness	Mounting Panel Thickness	Mounting Panel Thickness	Material	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Length - Overall	Length - Overall
Essentra Components CPST-7-01	11.13 mm	0.438 in	0.4375 "	Resting Mount	Snap Lock	0.062 "	0.0625 "	1.57 mm	Nylon	2.54 mm	0.1 in	14.69 mm	0.578 in
Essentra Components CPST-3-01	0.1875 in	0.188 in		Resting Mount	Snap Lock	0.062 "	0.0625 "	1.57 mm	Nylon	2.54 mm	0.1 in	8.33 mm	0.328 in
Essentra Components CPST-6-01	9.53 mm	0.375 in	0.375 "	Resting Mount	Snap Lock	0.062 "	0.0625 "	1.57 mm	Nylon	2.54 mm	0.1 in			0.516 in	13.11 mm
Essentra Components CPST-4-01	0.25 in	6.35 mm		Resting Mount	Snap Lock	0.062 "	0.0625 "	1.57 mm	Nylon	2.54 mm	0.1 in	9.93 mm	0.391 in
Essentra Components CPST-5-01	7.95 mm	0.313 in	0.3125 in	Resting Mount	Snap Lock	0.062 "	0.0625 "	1.57 mm	Nylon	2.54 mm	0.1 in	11.51 mm	0.453 "
