SJ6040N2TP Series

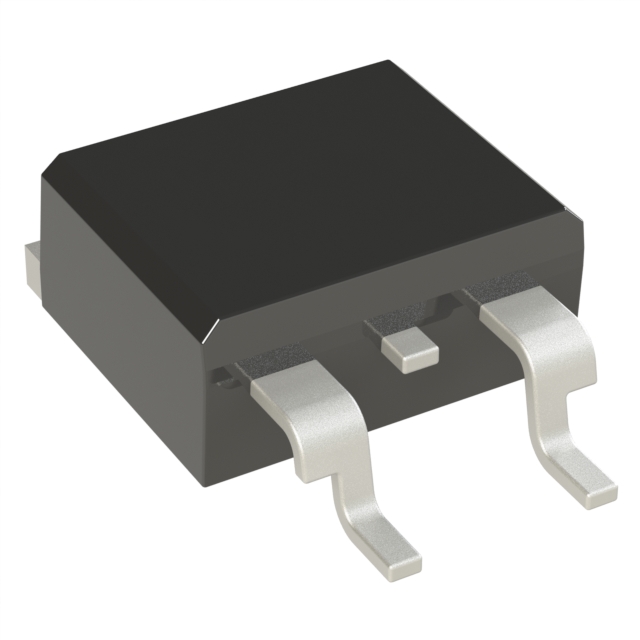

Thy SCR TO-263D2

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Thy SCR TO-263D2

Part	Voltage - Gate Trigger (Vgt) (Max) [Max]	Supplier Device Package	Current - Hold (Ih) (Max) [Max]	Current - Gate Trigger (Igt) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - On State (It (AV)) (Max) [Max]	SCR Type	Current - On State (It (RMS)) (Max) [Max]	Current - Off State (Max) [Max]	Package / Case	Mounting Type	Voltage - On State (Vtm) (Max) [Max]	Voltage - Off State
Littelfuse/Commercial Vehicle Products SJ6040N2RP	1.5 V	TO-263 (D2PAK)	50 mA	15 mA	150 °C	-40 °C	25 A	Standard Recovery	40 A	10 µA	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Surface Mount	1.7 V	600 V
Littelfuse/Commercial Vehicle Products SJ6040N2TP	1.5 V	TO-263 (D2PAK)	50 mA	15 mA	150 °C	-40 °C	25 A	Standard Recovery	40 A	10 µA	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Surface Mount	1.7 V	600 V
Littelfuse/Commercial Vehicle Products SJ6040NRP	1.5 V	TO-263 (D2PAK)	60 mA	40 mA	150 °C	-40 °C	25 A	Standard Recovery	40 A	10 µA	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Surface Mount	1.7 V	600 V

Catalog

Thy SCR TO-263D2

Key Features

• High junction temperature

• Voltage capability up to 600 V

• Surge capability up to 520 A at 60 Hz half cycle

• Halogen free and RoHS compliant

Description

This SJxx40xx high temperature SCR series is ideal for uni-directional switch applications such as phase control in heating, motor speed controls and AC rectifier and voltage regulator. These SCRs have a low gate current trigger level of 40 mA maximum at approximately 1.5 V, with a sensitive version of this series having a gate trigger current of 15 mA maximum.
