9652-1513 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

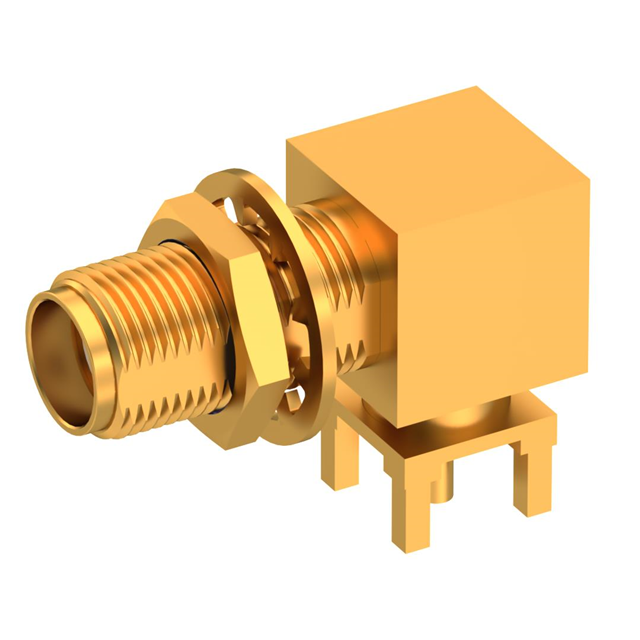

SMA F RA BHD TAB
| Part | Mating Cycles | Center Contact Plating | Body Material | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Includes | Body Finish | Number of Ports | Connector Style | Fastening Type | Connector Type | Mounting Feature | Shield Termination | Housing Color | Contact Termination | Frequency - Max [Max] | Impedance | Center Contact Material | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 | Gold | Stainless Steel | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | 1 Connector 1 Lockwasher 1 Nut | Gold | 1 | SMA | Threaded | Female Socket Jack | Bulkhead - Front Side Nut | Solder | Gold | Solder | 18 GHz | 50 Ohms | Beryllium Copper | Panel Mount Right Angle Through Hole |
