311SX64 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K

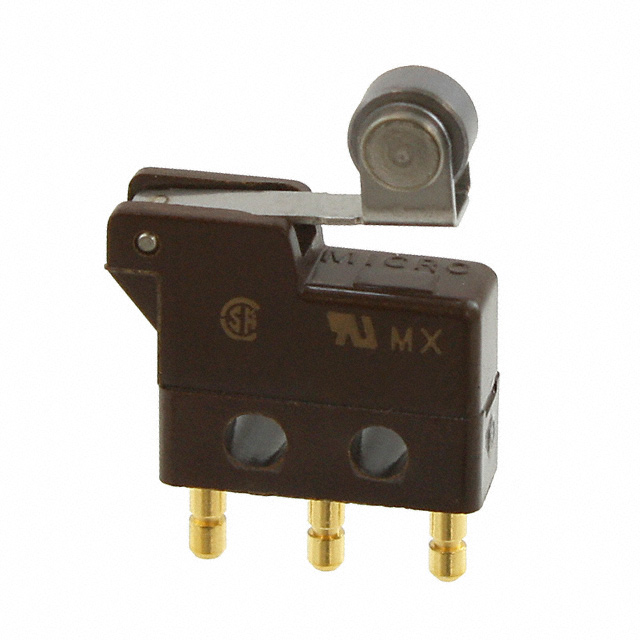

MICROSWITCH, SUBMINIATURE, ROLLER LEVER, SPDT, 5 A
| Part | Switch Function | Release Force | Termination Style | Termination Style | Pretravel | Pretravel | Differential Travel | Differential Travel | Operating Force | Mounting Type | Circuit | Voltage Rating - AC | Mechanical Life | Overtravel [custom] | Overtravel [custom] | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - DC | Operating Position | Operating Position | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | On-Mom | 11 gf | Quick Connect | 0.058 in | 0.05 in | 1.27 mm | 0.015 in | 0.38 mm | 67 gf | Chassis Mount | SPDT | 125 V | 10000000 Cycles | 0.01 " | 0.25 mm | 5 A | -55 C | 125 °C | 28 V | 14.15 mm | 0.557 in | Lever Roller |
