TR9KA3600 Series

Catalog

AC/DC DESKTOP ADAPTER 5V 18W

Part	No Load Power Consumption	Cord Length	Cord Length	Input Type	Current - Output (Max) [Max]	Efficiency	Voltage - Input [Max]	Voltage - Input [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Input Connector	Power (Watts)	Region Utilized	Polarization	Voltage - Output	Approval Agency	Output Connector [x]	Output Connector	Output Connector [diameter]	Form	Applications	Standard Number	Size / Dimension [y]	Size / Dimension [z]
GlobTek, Inc. TR9KA3600CL4P-IMR6B	75 mW	98.4 in	2.5 m	Cord (Sold Separately)	3.6 A	CoC Tier 2 Level VI	264 VAC	90 VAC	3.43 "	1.83 in	32 mm	1.26 "	46.5 mm	87 mm	-20 ░C	40 °C	IEC 320-C8	18 W	International	Positive Center	5 V	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM S-Mark UkrSEPRO UL VCCI	13.8 mm	Barrel Plug	2.1 mm 5.5 mm	Desktop (Class II)	Household Appliances ITE (Commercial) Medical

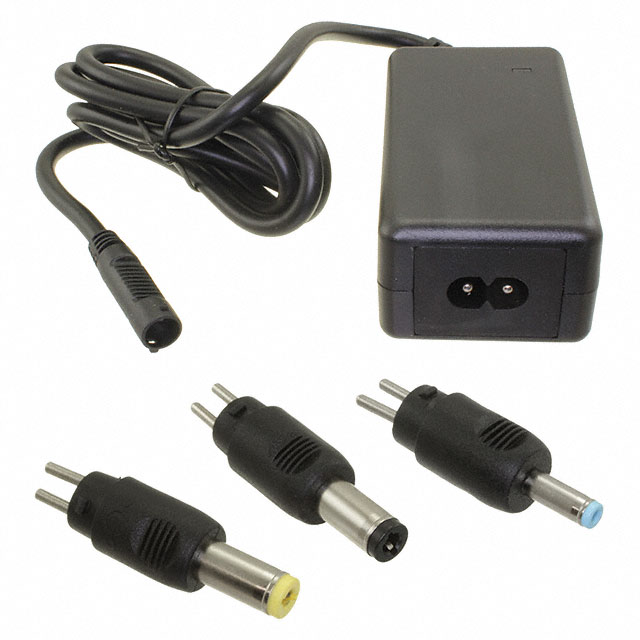

GlobTek, Inc. TR9KA3600T00-IMR6B	75 mW	47.2 in	1.2 m	Cord (Sold Separately)	3.6 A	Level VI	264 VAC	90 VAC	3.43 "	1.85 in		1.26 "		87 mm	-20 ░C	40 °C	IEC 320-C8	18 W	International		5 V	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM S-Mark UkrSEPRO UL VCCI		Barrel Plug Kit (1.3mm x 3.5mm		Desktop (Class II)	Household Appliances ITE (Commercial) Medical	1310 60335-1 60601-1-11 60601-1-2 60950-1 61558-1 62368-1	47 mm	32 mm

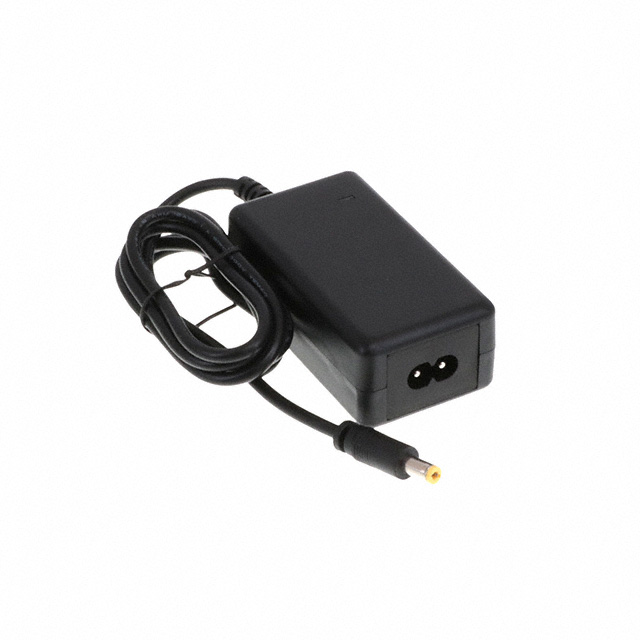

GlobTek, Inc. TR9KA3600CCP-IMR6B	75 mW	47.2 in	1.2 m	Cord (Sold Separately)	3.6 A	Level VI	264 VAC	90 VAC	3.43 "	1.85 in		1.26 "		87 mm	-20 ░C	40 °C	IEC 320-C8	18 W	International	Positive Center	5 V	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM S-Mark UkrSEPRO UL VCCI	11 mm	Barrel Plug	2.1 mm 5.5 mm	Desktop (Class II)	Household Appliances ITE (Commercial) Medical	1310 60335-1 60601-1-11 60601-1-2 60950-1 61558-1 62368-1	47 mm	32 mm
