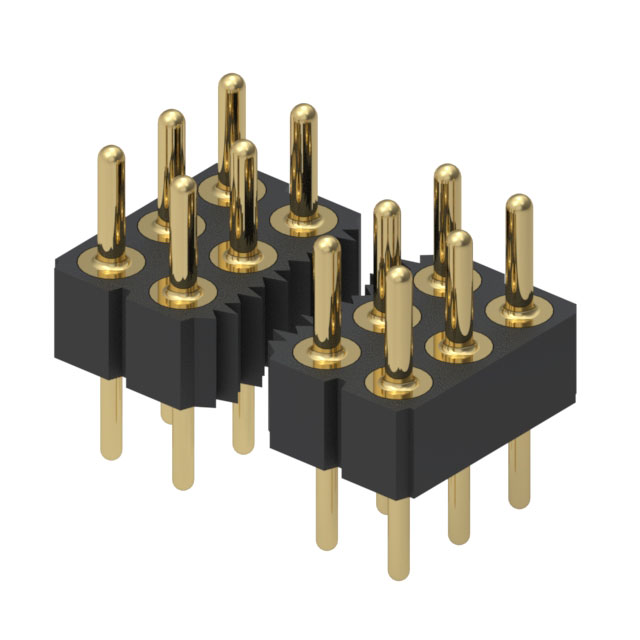

804-10 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN HEADER VERT 78POS 2.54MM

Part	Contact Length - Mating	Contact Length - Mating	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Material	Number of Positions	Overall Contact Length [x]	Overall Contact Length [x]	Number of Positions Loaded	Insulation Material	Number of Rows [custom]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Fastening Type	Termination	Contact Type	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Shrouding	Pitch - Mating	Pitch - Mating	Number of Positions [custom]
Mill-Max Manufacturing Corp. 804-10-078-10-002000	0.142 in	3.61 mm	Header	0.1 in	2.54 mm	Brass Alloy	78	10.16 mm	0.4 in	All	Polycyclohexylenedimethylene Terephthalate (PCT)	3	10 Áin	0.25 çm	Black	Circular	0.25 µm	10 µin	Through Hole	Push-Pull	Solder	Male Pin	Gold	3.38 mm	0.133 in	Gold	Unshrouded	0.1 "	2.54 mm
Mill-Max Manufacturing Corp. 804-10-018-10-002000	0.142 in	3.61 mm	Header	0.1 in	2.54 mm	Brass Alloy	18	10.16 mm	0.4 in	All	Polycyclohexylenedimethylene Terephthalate (PCT)	3	10 Áin	0.25 çm	Black	Circular	0.25 µm	10 µin	Through Hole	Push-Pull	Solder	Male Pin	Gold	3.38 mm	0.133 in	Gold	Unshrouded	0.1 "	2.54 mm
Mill-Max Manufacturing Corp. 804-10-042-10-002000	0.142 in	3.61 mm	Header	0.1 in	2.54 mm	Brass Alloy	42	10.16 mm	0.4 in	All	Polycyclohexylenedimethylene Terephthalate (PCT)	3	10 Áin	0.25 çm	Black	Circular	0.25 µm	10 µin	Through Hole	Push-Pull	Solder	Male Pin	Gold	3.38 mm	0.133 in	Gold	Unshrouded	0.1 "	2.54 mm
Mill-Max Manufacturing Corp. 804-10-051-10-002000	0.142 in	3.61 mm	Header	0.1 in	2.54 mm	Brass Alloy	51	10.16 mm	0.4 in	All	Polycyclohexylenedimethylene Terephthalate (PCT)	3	10 Áin	0.25 çm	Black	Circular	0.25 µm	10 µin	Through Hole	Push-Pull	Solder	Male Pin	Gold	3.38 mm	0.133 in	Gold	Unshrouded	0.1 "	2.54 mm
Mill-Max Manufacturing Corp. 804-10-087-10-002000	0.142 in	3.61 mm	Header	0.1 in	2.54 mm	Brass Alloy	87	10.16 mm	0.4 in	All	Polycyclohexylenedimethylene Terephthalate (PCT)	3	10 Áin	0.25 çm	Black	Circular	0.25 µm	10 µin	Through Hole	Push-Pull	Solder	Male Pin	Gold	3.38 mm	0.133 in	Gold	Unshrouded	0.1 "	2.54 mm
Mill-Max Manufacturing Corp. 804-10-063-10-002000	0.142 in	3.61 mm	Header	0.1 in	2.54 mm	Brass Alloy	63	10.16 mm	0.4 in	All	Polycyclohexylenedimethylene Terephthalate (PCT)	3	10 Áin	0.25 çm	Black	Circular	0.25 µm	10 µin	Through Hole	Push-Pull	Solder	Male Pin	Gold	3.38 mm	0.133 in	Gold	Unshrouded	0.1 "	2.54 mm
Mill-Max Manufacturing Corp. 804-10-084-10-002000	0.142 in	3.61 mm	Header	0.1 in	2.54 mm	Brass Alloy		10.16 mm	0.4 in	All	Polycyclohexylenedimethylene Terephthalate (PCT)	3	10 Áin	0.25 çm	Black	Circular	0.25 µm	10 µin	Through Hole	Push-Pull	Solder	Male Pin	Gold	3.38 mm	0.133 in	Gold	Unshrouded	0.1 "	2.54 mm	84
Mill-Max Manufacturing Corp. 804-10-015-10-002000	0.142 in	3.61 mm	Header	0.1 in	2.54 mm	Brass Alloy	15	10.16 mm	0.4 in	All	Polycyclohexylenedimethylene Terephthalate (PCT)	3	10 Áin	0.25 çm	Black	Circular	0.25 µm	10 µin	Through Hole	Push-Pull	Solder	Male Pin	Gold	3.38 mm	0.133 in	Gold	Unshrouded	0.1 "	2.54 mm
Mill-Max Manufacturing Corp. 804-10-081-10-002000	0.142 in	3.61 mm	Header	0.1 in	2.54 mm	Brass Alloy	81	10.16 mm	0.4 in	All	Polycyclohexylenedimethylene Terephthalate (PCT)	3	10 Áin	0.25 çm	Black	Circular	0.25 µm	10 µin	Through Hole	Push-Pull	Solder	Male Pin	Gold	3.38 mm	0.133 in	Gold	Unshrouded	0.1 "	2.54 mm
Mill-Max Manufacturing Corp. 804-10-096-10-002000	0.142 in	3.61 mm	Header	0.1 in	2.54 mm	Brass Alloy	96	10.16 mm	0.4 in	All	Polycyclohexylenedimethylene Terephthalate (PCT)	3	10 Áin	0.25 çm	Black	Circular	0.25 µm	10 µin	Through Hole	Push-Pull	Solder	Male Pin	Gold	3.38 mm	0.133 in	Gold	Unshrouded	0.1 "	2.54 mm
