SW-R1 Series
Manufacturer: Adam Tech
Beta
⌘K
SWITCH ROCKER DPST 20A 125V
| Part | Electrical Life | Actuator Type | Voltage Rating - AC | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Termination Style | Switch Function | Current Rating (Amps) | Color - Actuator/Cap | Actuator Marking | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Illumination Voltage (Nominal) | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | 10000 Cycles | Concave (Curved) | 125 V | DPST | 85 °C | -25 °C | Panel Mount Snap-In | Quick Connect - 0.250" (6.3mm) | On-Off | 20 A | Blue | O - | ||||

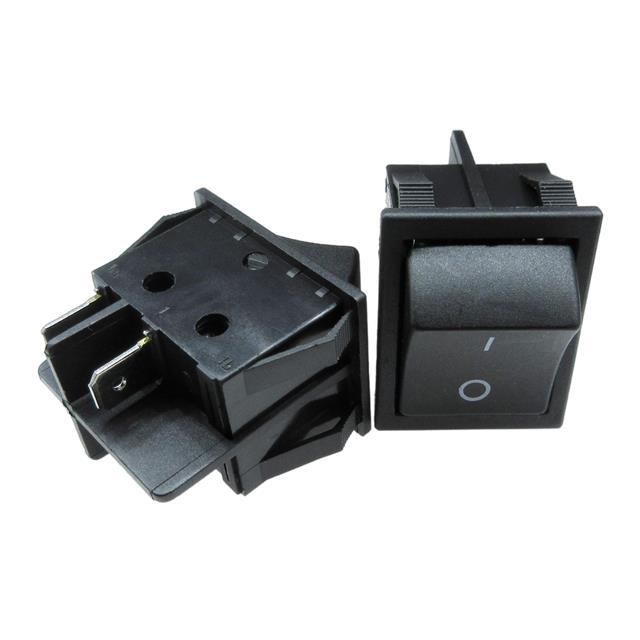

 Adam Tech | 10000 Cycles | Concave (Curved) | 125 V | DPST | 85 °C | -25 °C | Panel Mount Snap-In | Quick Connect - 0.250" (6.3mm) | Off-Mom | 20 A | Black | O - | 30 mm | 22 mm | ||
Adam Tech | 10000 Cycles | Concave (Curved) | 125 V | SPST | 85 °C | -25 °C | Panel Mount Snap-In | Quick Connect - 0.250" (6.3mm) | On-Off | 20 A | White | O - | 28 mm | 10 mm | ||

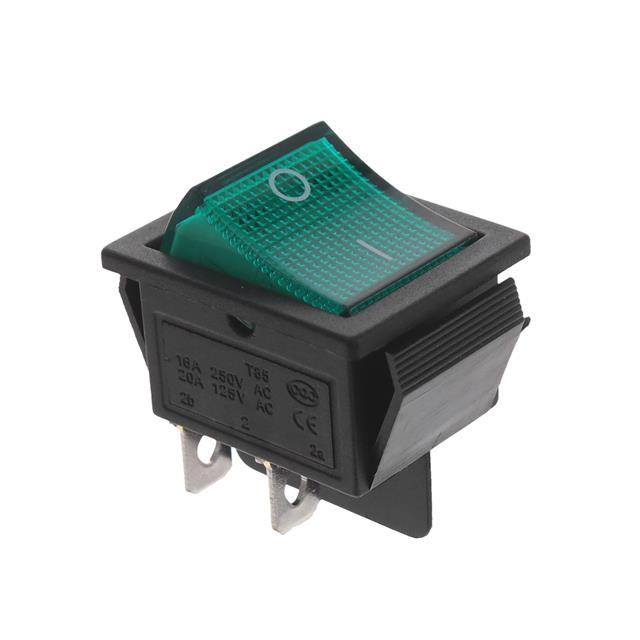

 Adam Tech | 10000 Cycles | Concave (Curved) - Illuminated | 125 V | DPST | 85 °C | -25 °C | Panel Mount Snap-In | Quick Connect - 0.250" (6.3mm) | On-Off | 20 A | Green | O - | 30 mm | 22 mm | 12 VDC | Green LED |
Adam Tech | 10000 Cycles | Concave (Curved) | 125 V | DPST | 85 °C | -25 °C | Panel Mount Snap-In | Quick Connect - 0.250" (6.3mm) | On-Off | 20 A | Amber | ON OFF | ||||
Adam Tech | 10000 Cycles | Concave (Curved) | 125 V | DPST | 85 °C | -25 °C | Panel Mount Snap-In | Quick Connect - 0.250" (6.3mm) | On-Off | 20 A | White | ON OFF |
