PKB.M0 Series
Manufacturer: LEMO
Beta
⌘K

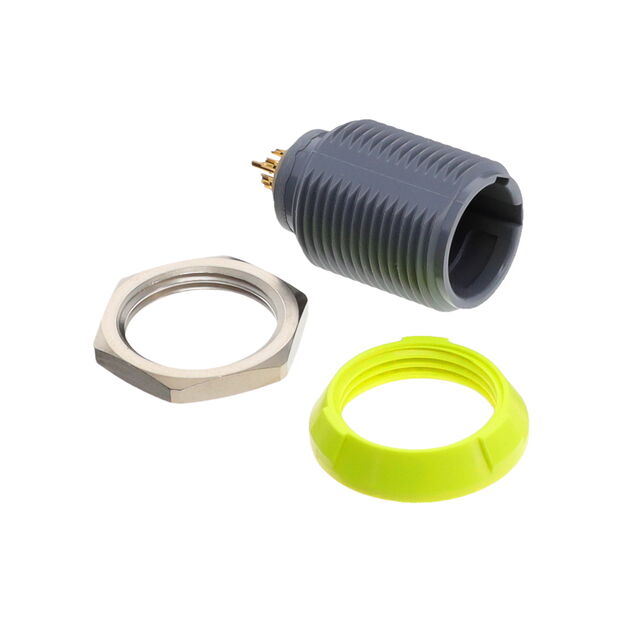

CONN RCPT FMALE 8POS GOLD SOLDER
| Part | Connector Type | Contact Finish - Mating | Current Rating (Amps) | Shielding | Number of Positions | Termination | Fastening Type | Mounting Feature | Orientation | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Primary Material | Shell Material | Applications | Color | Insert Material | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO | Receptacle Female Sockets | Gold | 5 A | Unshielded | 8 | Solder | Detent Lock Push-Pull | Front and Rear Side Nut | B | Panel Mount Through Hole | 150 °C | -50 °C | IP50 - Dust Protected | Plastic | Polysulfone (PSU) | Automotive Industrial Medical Testing Equipment & Measurement | Gray Yellow | Polyetheretherketone (PEEK) | M08 |
LEMO | Receptacle Female Sockets | Gold | 3 A | Unshielded | 9 | Detent Lock Push-Pull | Front and Rear Side Nut | B | Panel Mount | 170 °C | -50 °C | IP50 - Dust Protected | Plastic | Polyetherimide (PEI) | Automotive Industrial Medical Testing Equipment & Measurement | Blue Gray | Polyetheretherketone (PEEK) | M09 | |
LEMO | Receptacle Female Sockets | Gold | 6 A | Unshielded | 6 | Detent Lock Push-Pull | Front and Rear Side Nut | B | Panel Mount | 170 °C | -50 °C | IP50 - Dust Protected | Plastic | Polyetherimide (PEI) | Automotive Industrial Medical Testing Equipment & Measurement | Gray | Polyetheretherketone (PEEK) | M06 | |
LEMO | Receptacle Female Sockets | Gold | 8 A | Unshielded | 4 | Crimp | Detent Lock Push-Pull | Front and Rear Side Nut | B | Panel Mount | 170 °C | -50 °C | IP50 - Dust Protected | Plastic | Polyetherimide (PEI) | Automotive Industrial Medical Testing Equipment & Measurement | Gray | Polyetheretherketone (PEEK) | M04 |
 LEMO | Receptacle Female Sockets | Gold | 5 A | Unshielded | 8 | Detent Lock Push-Pull | Front and Rear Side Nut | B | Panel Mount | 170 °C | -50 °C | IP50 - Dust Protected | Plastic | Polyetherimide (PEI) | Automotive Industrial Medical Testing Equipment & Measurement | Gray Yellow | Polyetheretherketone (PEEK) | M08 | |
LEMO | Receptacle Female Sockets | Gold | 8 A | Unshielded | 4 | Solder | Detent Lock Push-Pull | Front and Rear Side Nut | B | Panel Mount Through Hole | 170 °C | -50 °C | IP50 - Dust Protected | Plastic | Polyetherimide (PEI) | Automotive Industrial Medical Testing Equipment & Measurement | Black | Polyetheretherketone (PEEK) | M04 |
LEMO | Receptacle Female Sockets | Gold | 5 A | Unshielded | 8 | Solder | Detent Lock Push-Pull | Front and Rear Side Nut | B | Panel Mount Right Angle Through Hole | 170 °C | -50 °C | IP50 - Dust Protected | Plastic | Polyetherimide (PEI) | Automotive Industrial Medical Testing Equipment & Measurement | Gray Yellow | Polyetheretherketone (PEEK) | M08 |
LEMO | Receptacle Female Sockets | Gold | 8 A | Unshielded | 4 | Detent Lock Push-Pull | Front and Rear Side Nut | B | Panel Mount | 170 °C | -50 °C | IP50 - Dust Protected | Plastic | Polyetherimide (PEI) | Automotive Industrial Medical Testing Equipment & Measurement | Gray | Polyetheretherketone (PEEK) | M04 | |
LEMO | Receptacle Female Sockets | Gold | 8 A | Unshielded | 4 | Detent Lock Push-Pull | Front and Rear Side Nut | B | Panel Mount | 170 °C | -50 °C | IP50 - Dust Protected | Plastic | Polyetherimide (PEI) | Automotive Industrial Medical Testing Equipment & Measurement | Blue Gray | Polyetheretherketone (PEEK) | M04 | |
LEMO | Receptacle Female Sockets | Gold | 7 A | Unshielded | 5 | Detent Lock Push-Pull | Front and Rear Side Nut | B | Panel Mount | 170 °C | -50 °C | IP50 - Dust Protected | Plastic | Polyetherimide (PEI) | Automotive Industrial Medical Testing Equipment & Measurement | Gray | Polyetheretherketone (PEEK) | M05 |
