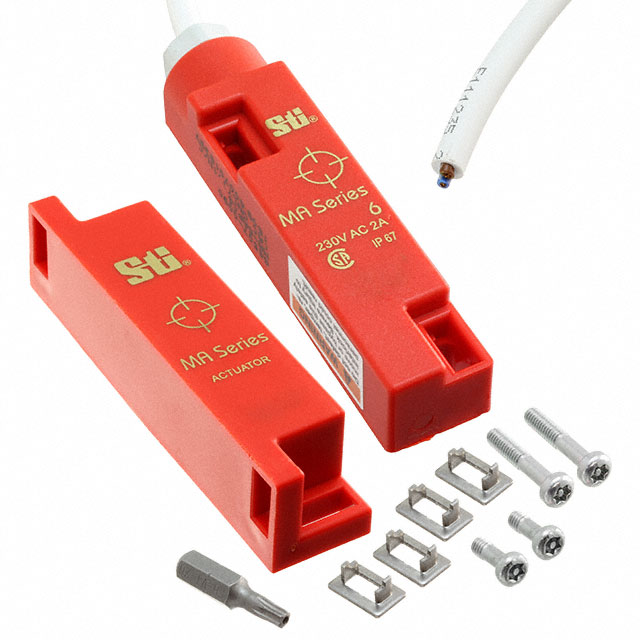

MA-6A Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
INTERLOCK MAGNETIC SPST
| Part | Must Operate [Min] | Must Operate [Max] | Termination Style | Ingress Protection | Circuit | Current Rating (Amps) | Voltage Rating | Must Release [Max] | Must Release [Min] | Actuator Type | Operating Temperature [Max] [custom] | Operating Temperature [Min] [custom] | Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 7 mm | 12 mm | Cable Leads | IP67 - Dust Tight Waterproof | SPST-NC | 2 A | 230 VAC | 25 mm | 12 mm | Non-Contact | 55 °C | -10 °C | Magnetic | CE cULus |
Omron Electronics Inc-EMC Div | 7 mm | 12 mm | Cable Leads | IP67 - Dust Tight Waterproof | SPST-NC | 2 A | 230 VAC | 25 mm | 12 mm | Non-Contact | 55 °C | -10 °C | Magnetic | CE cULus |
