90224 Series
Manufacturer: Preci-Dip
Beta
⌘K

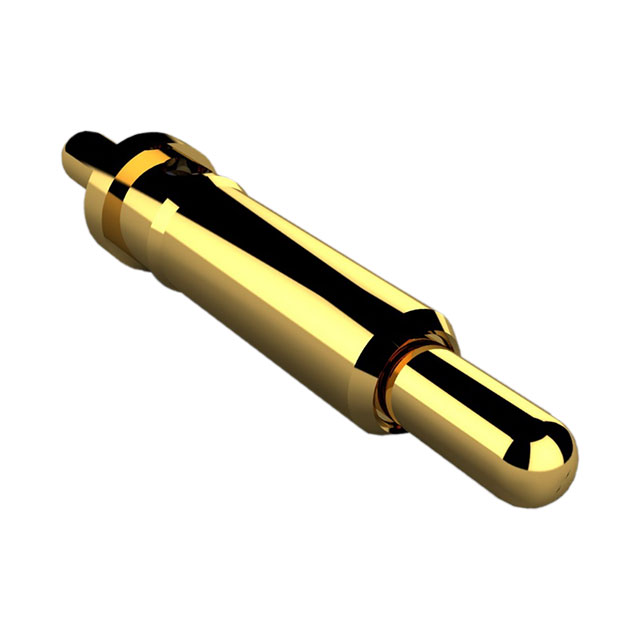

CONTACT SPRING LOADED T/H GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Operating Force - Initial | Mounting Type | Plunger Size [diameter] | Plunger Size [diameter] | Minimum Working Height | Minimum Working Height | Contact Type | Pad Layout Dimension | Pad Layout Dimension | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Maximum Working Height [Max] | Maximum Working Height [Max] | Mating Cycles | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | -55 C | 125 °C | 25.49 gf | Through Hole | 0.038 in | 0.96 mm | 5.9 mm | 0.232 in | Sleeve & Plunger (Pogo Pins) | 0.072 in | 1.83 mm | Brass Alloy | 0.25 Ám | 10 Áin | Gold | 7.9 mm | 0.311 in | 40000 | 3 A |
