ec6aw-110 Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

CONVERTER: DC/DC; 10W; UIN: 43÷160VDC; UOUT: 12VDC; 12V; IOUT: 416MA

Part	Applications	Type	Package / Case	Voltage - Isolation	Voltage - Output 2	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input (Min) [Min]	Approval Agency	Standard Number	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Control Features	Power (Watts)	Voltage - Output 1	Voltage - Input (Max) [Max]	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Features	Mounting Type	Efficiency	Current - Output (Max)
Cincon Electronics Co. LTD EC6AW-110D12N	ITE (Commercial)	Isolated Module	24-DIP Module 9 Leads	3000 V	-12 V	1.25 in	31.8 mm	12.7 mm	0.8 "	20.3 mm	0.5 in	43 V	CE cURus	60950-1	416 mA	416 mA	Active Low Enable	9.98 W	12 V	160 V	2	-40 °C	85 °C	Adjustable Output Remote On/Off	Through Hole	87 %

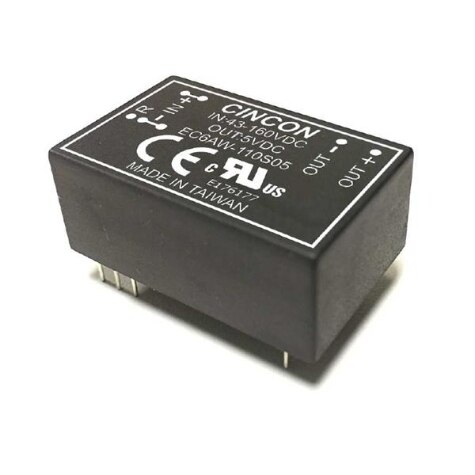

Cincon Electronics Co. LTD EC6AW-110S33N	ITE (Commercial)	Isolated Module	24-DIP Module 8 Leads	3000 V		1.25 in	31.8 mm	12.7 mm	0.8 "	20.3 mm	0.5 in	43 V	CE cURus	60950-1	2.5 A		Active Low Enable	8.25 W	3.3 V	160 V	1	-40 °C	85 °C	Adjustable Output Remote On/Off	Through Hole	85 %
Cincon Electronics Co. LTD EC6AW-110D15N	ITE (Commercial)	Isolated Module	24-DIP Module 9 Leads	3000 V	-15 V	1.25 in	31.8 mm	12.7 mm	0.8 "	20.3 mm	0.5 in	43 V	CE cURus	60950-1			Active Low Enable	9.99 W	15 V	160 V	2	-40 °C	85 °C	Adjustable Output Remote On/Off	Through Hole	87.5 %	333 mA
Cincon Electronics Co. LTD EC6AW-110S15N	ITE (Commercial)	Isolated Module	24-DIP Module 8 Leads	3000 V		1.25 in	31.8 mm	12.7 mm	0.8 "	20.3 mm	0.5 in	43 V	CE cURus	60950-1	666 mA		Active Low Enable	9.99 W	15 V	160 V	1	-40 °C	85 °C	Adjustable Output Remote On/Off	Through Hole	88.5 %
