SJ-42 Series

Manufacturer: Same Sky (Formerly CUI Devices)

Catalog

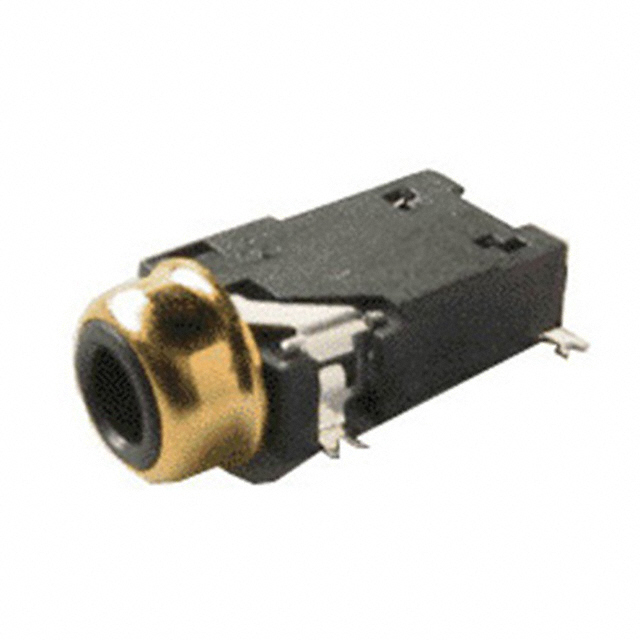

CONN JACK 4COND 2.5MM SMD R/A

Part	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Signal Lines	Shielding	Gender	Mounting Type	Actual Diameter [diameter]	Actual Diameter [diameter]	Termination	Features	Connector Type	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Body Color	Voltage - Rated	Contact Material - Plating	Housing Material	Contact Material	Mating Length/Depth	Mating Length/Depth	Current Rating (Amps)	Internal Switch(s)
Same Sky (Formerly CUI Devices) SJ-42524-SMT-1	2.5 mm	0.094 "	3 /32"	Stereo (4 Conductor TRRS)	Unshielded	Female	Right Angle Surface Mount	2.6 mm	0.102 in	Solder	Board Guide	Phone Jack	4	4	85 °C	-40 C
Same Sky (Formerly CUI Devices) SJ-42516-SMT	2.5 mm	0.094 "	3 /32"	Stereo (4 Conductor TRRS)	Unshielded	Female	Right Angle Surface Mount	2.6 mm	0.102 in	Solder	Board Guide	Phone Jack	4	6			Black	16 V	Gold	Polyamide (PA) Nylon	Brass Copper Alloy	11 mm	0.433 in	0.3 A	Two Switches
Same Sky (Formerly CUI Devices) SJ-42524-SMT	2.5 mm	0.094 "	3 /32"	Stereo (4 Conductor TRRS)	Unshielded	Female	Right Angle Surface Mount	2.6 mm	0.102 in	Solder	Board Guide	Phone Jack	4	4	85 °C	-40 C
Same Sky (Formerly CUI Devices) SJ-42524-SMT-1	2.5 mm	0.094 "	3 /32"	Stereo (4 Conductor TRRS)	Unshielded	Female	Right Angle Surface Mount	2.6 mm	0.102 in	Solder	Board Guide	Phone Jack	4	4	85 °C	-40 C	Black	16 V	Gold Silver	Liquid Crystal Polymer (LCP)	Copper Alloy			0.3 A
Same Sky (Formerly CUI Devices) SJ-42516-SMT	2.5 mm	0.094 "	3 /32"	Stereo (4 Conductor TRRS)	Unshielded	Female	Right Angle Surface Mount	2.6 mm	0.102 in	Solder	Board Guide	Phone Jack	4	6											Two Switches
Same Sky (Formerly CUI Devices) SJ-42514-SMT	2.5 mm	0.094 "	3 /32"	Stereo (4 Conductor TRRS)	Unshielded	Female	Right Angle Surface Mount	2.6 mm	0.102 in	Solder	Board Guide	Phone Jack	4	4	85 °C	-20 ░C	Black	16 V	Gold	Nylon 6T Polyamide (PA6T)	Brass Copper Alloy			0.3 A
Same Sky (Formerly CUI Devices) SJ-42524-SMT	2.5 mm	0.094 "	3 /32"	Stereo (4 Conductor TRRS)	Unshielded	Female	Right Angle Surface Mount	2.6 mm	0.102 in	Solder	Board Guide	Phone Jack	4	4	85 °C	-40 C	Black	16 V	Gold Silver	Polybutylene Terephthalate (PBT)	Brass Copper Alloy Phosphor Bronze			0.3 A
Same Sky (Formerly CUI Devices) SJ-42525TS-SMT-1	2.5 mm	0.094 "	3 /32"	Stereo (4 Conductor TRRS)	Unshielded	Female	Right Angle Surface Mount	2.6 mm	0.102 in	Solder	Board Guide	Phone Jack	4	5											Single Switch
Same Sky (Formerly CUI Devices) SJ-42534-SMT	2.5 mm	0.094 "	3 /32"	Stereo (4 Conductor TRRS)	Unshielded	Female	Right Angle Surface Mount	2.6 mm	0.102 in	Solder	Board Guide	Phone Jack	4	4	85 °C	-20 ░C	Black	16 V	Silver	Nylon 6T Polyamide (PA6T)	Brass Copper Alloy			0.3 A
Same Sky (Formerly CUI Devices) SJ-42514-SMT	2.5 mm	0.094 "	3 /32"	Stereo (4 Conductor TRRS)	Unshielded	Female	Right Angle Surface Mount	2.6 mm	0.102 in	Solder	Board Guide	Phone Jack	4	4	85 °C	-20 ░C
