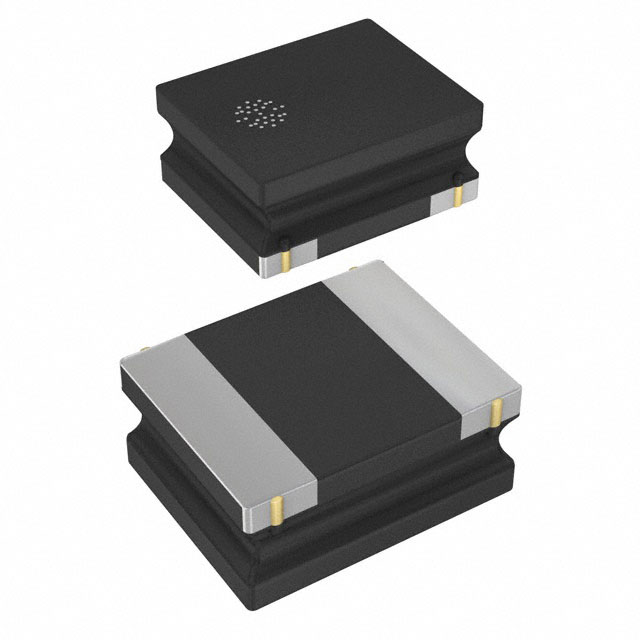

VLS-HBU Series

Catalog

POWER INDUCTORS - SMD 6.8UH,+-20%,2520 POWER INDUCTOR

Part	Package / Case	Package / Case	Tolerance	Current - Saturation (Isat)	Shielding	Material - Core	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Type	Inductance	Current Rating (Amps)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	DC Resistance (DCR) [Max]	Inductance Frequency - Test	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR)
TDK Corporation VLS252012HBU-6R8M	2520 Metric	1008	20 %	1.28 A	Shielded	Metal	2.5 mm	0.079 in	0.098 in	2 mm	Drum Core Wirewound	6.8 µH	970 mA	1.2 mm	0.047 "	-40 C	105 ░C	440 mOhm	1 MHz	Surface Mount
TDK Corporation VLS252010HBU-220M		Nonstandard	20 %	750 mA	Shielded	Metal	2.5 mm	0.079 in	0.098 in	2 mm	Drum Core Wirewound	22 µH	470 mA			-40 C	105 ░C		1 MHz	Surface Mount	0.039 in	1 mm	2.004 Ohm
