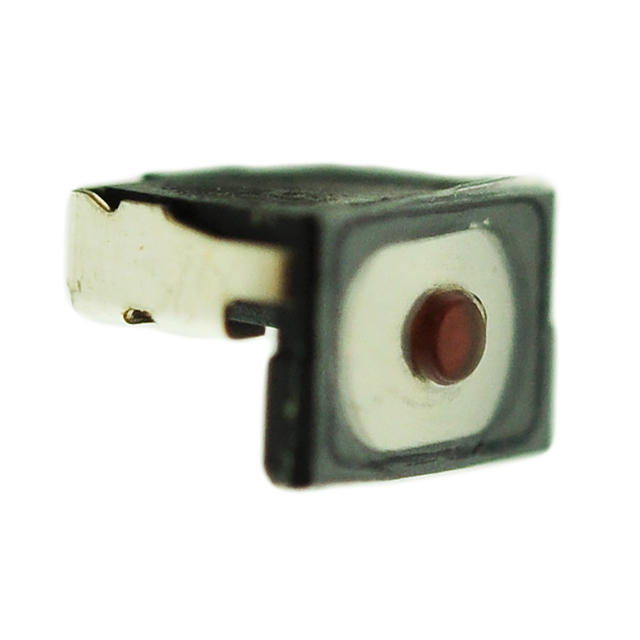

TL4110 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.02A 15V
| Part | Mechanical Life | Switch Travel | Mounting Type | Actuator Orientation | Actuator Type | Switch Function | Actuator Length, Right Angle | Illumination | Operating Force | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Outline [y] | Outline [x] | Contact Rating @ Voltage | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 300000 Cycles | 0.13 mm | Edge Mount Right Angle | Side Actuated | Standard | Off-Mom | 0.65 mm | Non-Illuminated | 160 gf | SPST-NO | 85 °C | -40 C | 2.46 mm | 2.8 mm | 0.02 A 15 VDC | Gull Wing |
